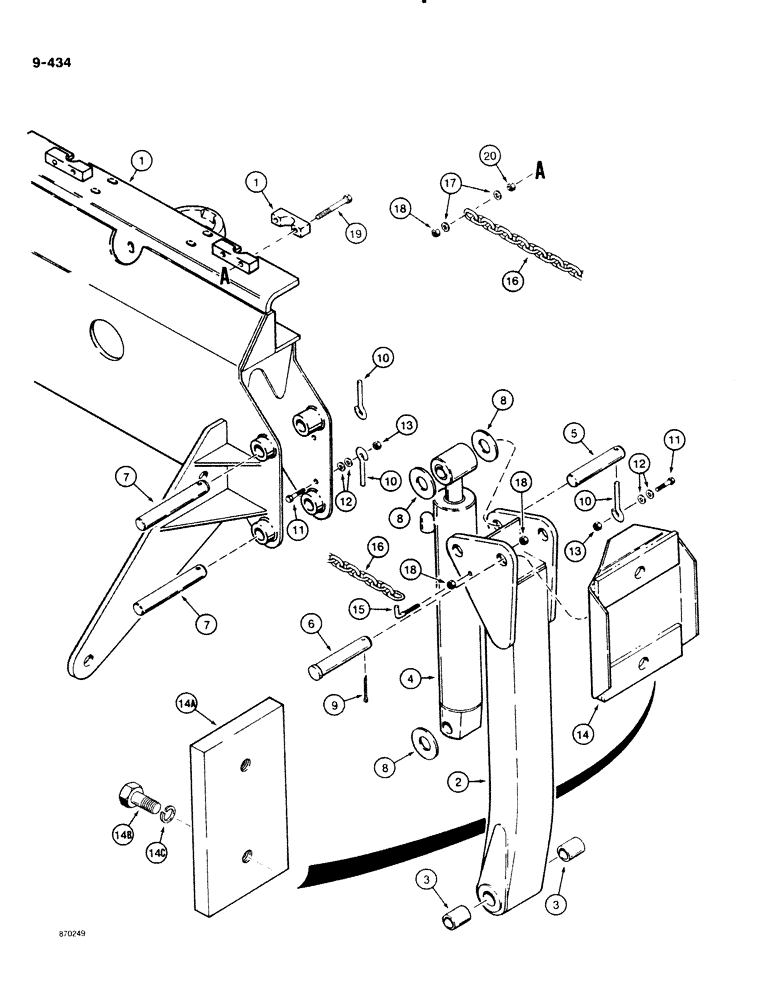

Запчасти Case DH4B (9-434) - BACKHOE STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

H643965

FRAME ASSY

FRAME ASSEMBLY - backhoe mounting, parts list Figure 9-432

1шт.

2

H642975

STABILIZER

LEG - backhoe stabilizer, Includes: Ref. 3

2шт.

3

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- stabilizer leg

2шт.

4

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

CYILNDER ASSEMBLY - backhoe stabilizer, parts list Figure 8-344

2шт.

5

H109801

AXLE PIN

PIN - stabilizer cylinder rod end to stabilizer leg

2шт.

6

H79285

PIN

- stabilizer leg to stabilizer pad

2шт.

7

H382234

PIN

- stabilizer cylinder closed end and stabilizer leg to backhoe frame

4шт.

8

195-112

WASHER,1 1/4" x 2 3/4" x .164"

- flat, 1-1/8", plated

1шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

10

H313981

PIN

- retainer

6шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

12шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

14

H533646

LARGE PLATE

PLATE - stabilizer, standard, cleated

2шт.

14a

H371203

PAD

PLATE - stabilizer, street-type, bolts to standard cleated stabilizer plate, if used

2шт.

Part of Street Type Stabilizer Plate, P/N H930032

1шт.

14b

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

If used Hex, 3/4"-10 x 2 1/4", G5

4шт.

Part of Street Type Stabilizer Plate, P/N H930032

1шт.

14c

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , If used 3/4"

4шт.

Part of Street Type Stabilizer Plate, P/N H930032

1шт.

15

H429209

HOOK

- stabilizer chain retaining

2шт.

16

H429217

CHAIN (AG)

CHAIN - stabilizer leg transport

2шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

19

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Included with H643965 frame, see Figure 9-432 Hex, 3/8"-16 x 3 1/4", G5

2шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated, Included with H643965 frame, See Figure 9-432

2шт.

H930032

KIT - street-type stabilizer plate, includes Refs. 14A, 14B, and 14C

1шт.
