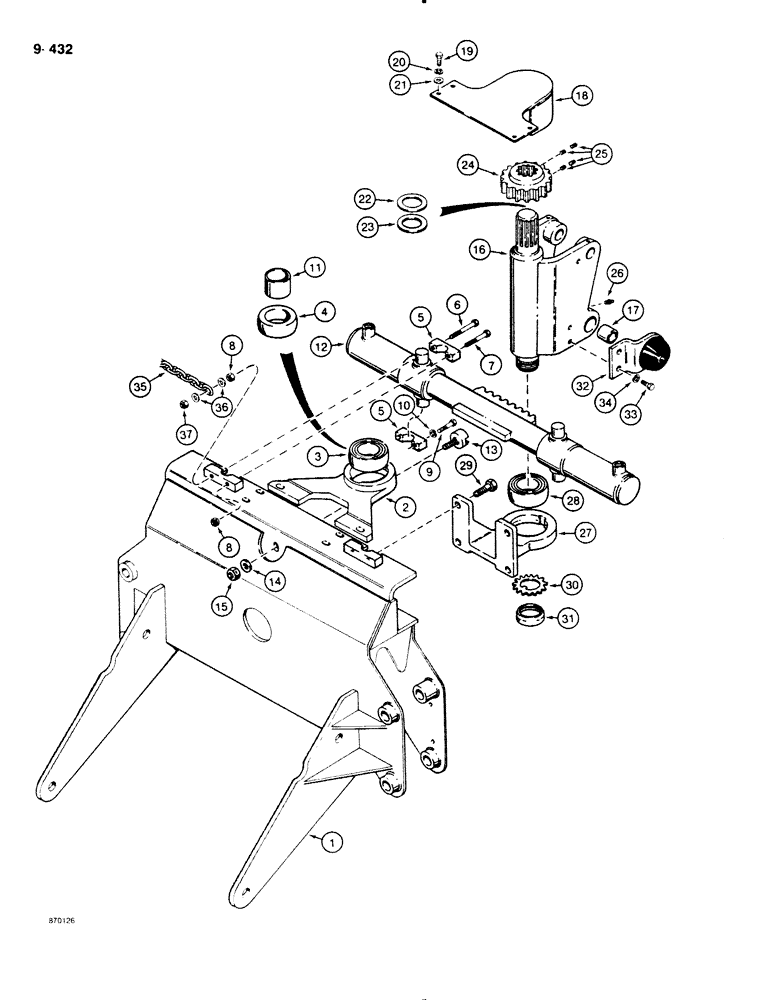

Запчасти Case DH4B (9-432) - BACKHOE FRAME AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

H643965

FRAME ASSY

FRAME ASSEMBLY - backhoe attachment, see Figure 9-430 for backhoe frame mounting hardware, Includes: Ref. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - backhoe attachment

1шт.

2

H50062

PLATE ASSY.

BRACKET - swing tower, upper frame bearing, welded to backhoe frame

1шт.

3

H747170

BALL BEARING

BEARING - backhoe frame, upper, order H434031 bearing and H434219 spacer

1шт.

4

H434031

BEARING

- backhoe frame, upper, replaces ref. 3, H747170 bearing

1шт.

5

REF

INSTRUCTION

CAP - swing cylinder retaining, order H656108 cap assembly, see below

4шт.

6

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

7

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

H434219

KIT

SLEEVE - bearing, used with H434031 bearing

1шт.

12

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - backhoe swing, parts list Figure 8-342

1шт.

13

CASH50377

GUIDE

- rack, swing cylinder

1шт.

14

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

1шт.

15

131-1171

LOCK NUT,5/8"-18, GB

NUT, LOCK, 5/8"-18, GB

1шт.

16

H514596

POST

SWING TOWER - backhoe, Includes: Ref. 17

1шт.

17

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- swing tower

2шт.

18

H514380

COVER ASSY

COVER - gear

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

22

H433285

SPACER

SHIM - swing gear, 1.5 mm thick, used with H747170 upper bearing, if used

1шт.

23

H433284

SPACER

SHIM - swing gear, 3 mm thick, used with H747170 upper bearing, if used

1шт.

24

H50369

GEAR WHEEL

GEAR - swing

1шт.

25

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket headless, 3/8" - 16 NC x 3/8", cone point

4шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, in swing tower 1/4"-28 NPT x .54" lg

1шт.

27

H571927

BEARING ASSY

BRACKET - swing tower, lower frame bearing, Includes: Ref. 28

1шт.

28

H747170

BALL BEARING

BEARING - lower frame bracket

1шт.

29

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Lower bracket to backhoe frame Hex, 5/8"-11 x 2", G5

4шт.

30

192-311

BEARING WASHER,Bearing, W-11

WASHER - special, bearing lock

1шт.

31

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - self-locking, special for ball bearings

1шт.

32

H625756

BRACKET

BUMPER - pin retainer for ball bearings

2шт.

33

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

35

H429217

CHAIN (AG)

CHAIN - stabilizer leg transport

2шт.

36

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

37

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

H656108

CAP ASSY.

1шт.

When Ref. 4 or 11 are ordered, H673658 Bearing Field Kit should be furnished.

1шт.

H656108

CAP ASSY.

1шт.

H656108 CAP ASSEMBLY - swing cylinder retaining, includes the following: (1) matched set of center-bored retaining caps, (1) H718874 bolt (3/8" - 16 NC x 3-1/2", grade 8), (1) H718866 bolt (3/8" - 16 NC x 3-1/2", grade 8), (2) 195-525 washers (flat, 3/8", plated), and (2) 131-1216 self-locking nuts (3/8" - 16 NC, plated, grade C).

1шт.
