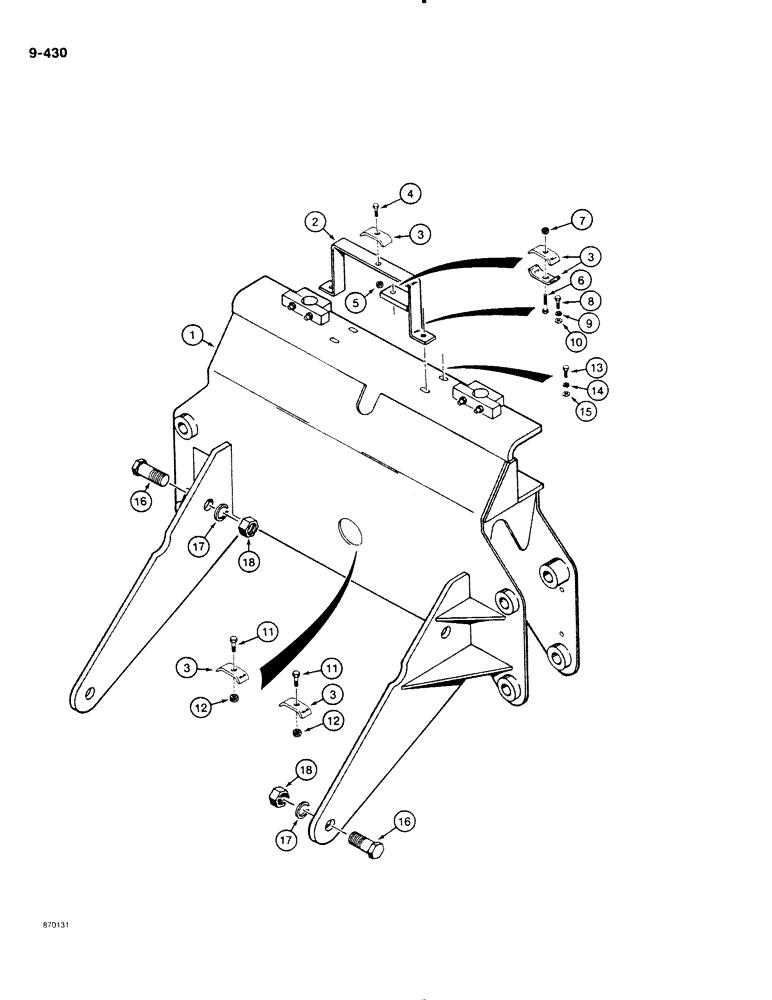

Запчасти Case DH4B (9-430) - BACKHOE FRAME MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H643965

FRAME ASSY

FRAME ASSEMBLY - backhoe mounting, parts list Figure 9-432

1шт.

2

H672065

BRACKET

- clamp mounting, used on models with front mounted backhoe

1шт.

3

H45468

CLAMP

- tube

5шт.

4

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

6

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

11

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

16

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

17

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

18

131-1184

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1" - 8 NC, plated

4шт.
