(9-428) - REAR MOUNTED BACKHOE CONTROL CONSOLE, VERTICAL VALVE

Запчасти Case DH4B (9-428) - REAR MOUNTED BACKHOE CONTROL CONSOLE, VERTICAL VALVE (09) - CHASSIS/ATTACHMENTS

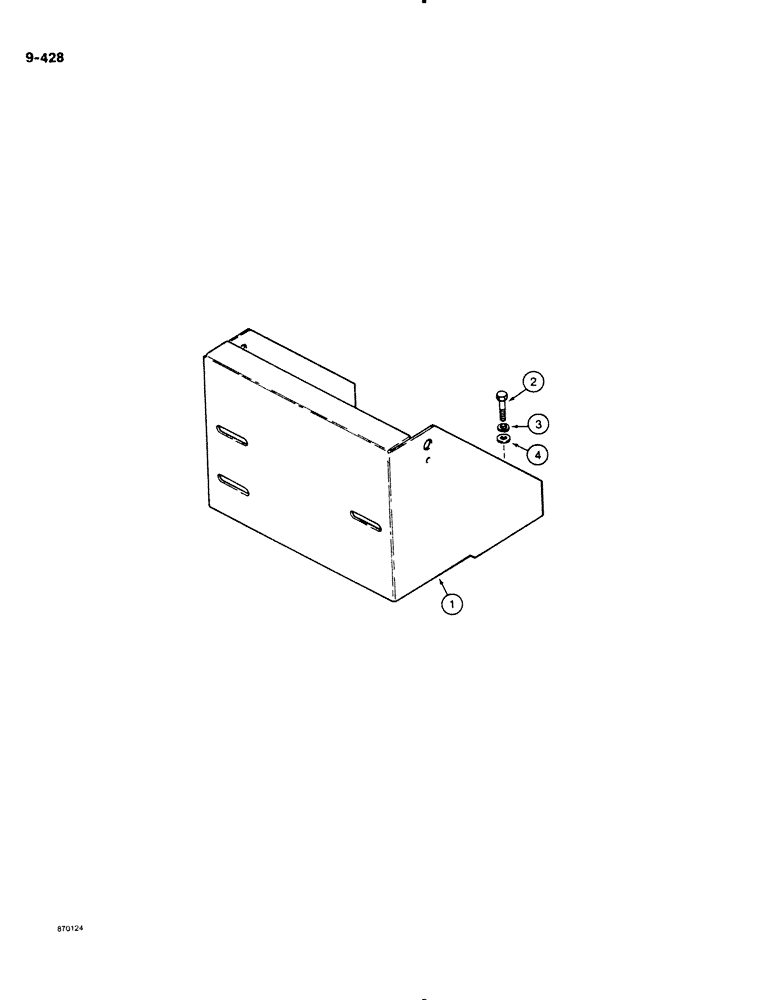

Схема запчастей Case DH4B - (9-428) - REAR MOUNTED BACKHOE CONTROL CONSOLE, VERTICAL VALVE (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H428359

CONSOLE

- backhoe control valve mounting, see figure 8-277 for backhoe control valve mounting

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.
