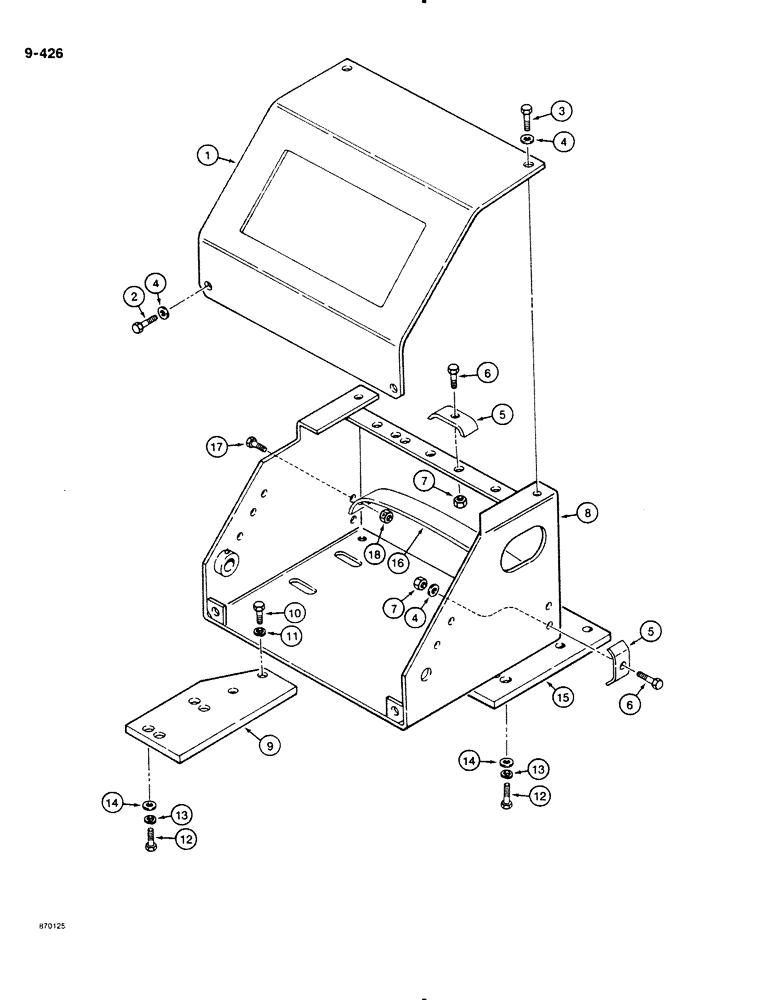

Запчасти Case DH4B (9-426) - REAR MOUNTED BACKHOE CONTROL CONSOLE, HORIZONTAL VALVE (09) - CHASSIS/ATTACHMENTS

1

H381079

COVER

- console

1шт.

2

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4", plated

2шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

5

H429696

MOUNTING CLIP

CLAMP - tube

5шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

5шт.

8

H643981

CONSOLE

- backhoe control valve

1шт.

9

H381095

PLATE

- console mounting

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.

13

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

14

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

3шт.

15

H381103

SHEET

PLATE - console mounting

1шт.

16

H396796

COVER

- backhoe control valve spool springs

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.
