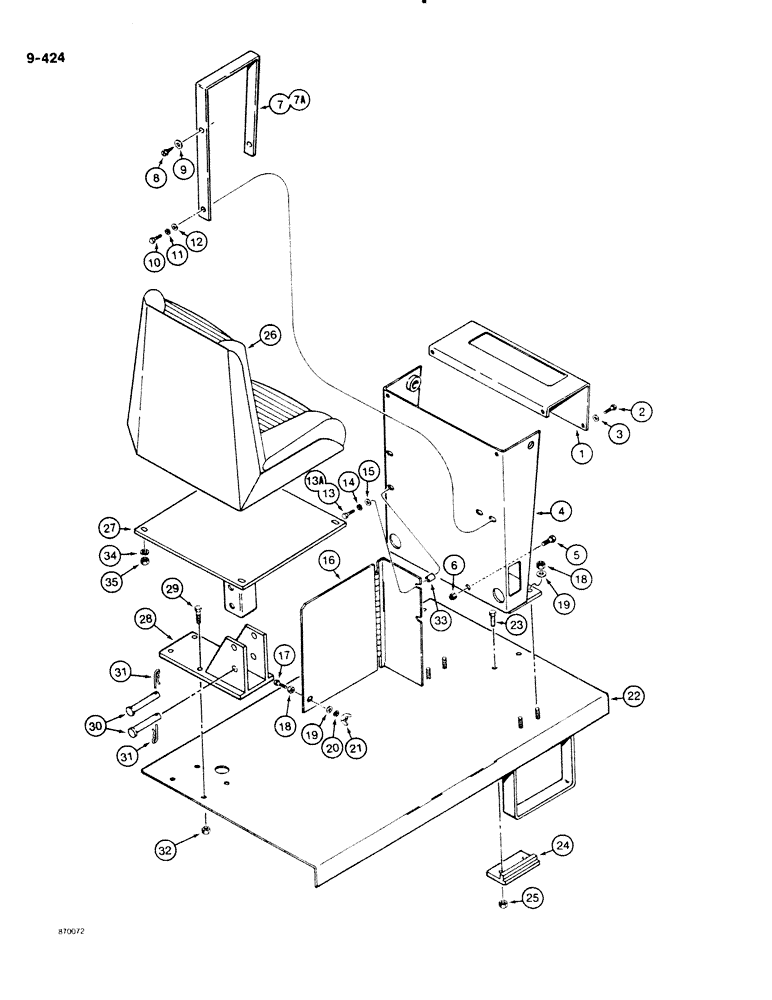

Запчасти Case DH4B (9-424) - FRONT MOUNTED BACKHOE CONTROL TOWER AND SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H50880

COVER

- backhoe control valve, backhoes with standard controls, if used, see figure 8-291 for dual lever backhoe control valve cover

1шт.

2

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4", plated

3шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

4

H514588

SUPPORT

CONTROL TOWER - backhoe, models with standard contorls, see figure 8-291 for dual lever control tower

1шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

7

H390732

HANDLE

- backhoe operator access assist, used on backhoes with standard controls, if used

1шт.

7a

H421198

HANDLE - backhoe operator access assist, used on backhoes with dual lever control, if used

1шт.

8

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4", plated

1шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

10

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

1шт.

13

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Used on backhoes with standard controls, if used Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

13a

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Used on backhoes with dual lever controls, if used Hex, 7/16"-14 x 1 1/2", G5

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

2шт.

16

H652545

SHIELD

- heat

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

5шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

5шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

129-419

WING NUT,5/16"-18

- 5/16" - 18 NC, plated

1шт.

22

H646463

FLOOR

PLATE - backhoe control and seat mounting

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

H646497

CLAMP

- mounting, Serial Range: plate-fender

1шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

26

H436146

SEAT

ASSEMBLY - front mounted backhoe operator's, parts list Figure 9-362 (Replaces H669457)

1шт.

27

H673932

SEAT

POST - seat (Replaces H646471)

1шт.

28

H646489

BRACKET

- seat mounting

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

30

H120220

CLEVIS

PIN - special, seat mounting

2шт.

31

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - internal type, 5/16" x 2-25/32", plated

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

33

F65306

SPACER - heat shield, used on backhoes with dual controls, if used

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Included with H669457 seat assembly 5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

Included with H669457 seat assembly 5/16"-18, G5

4шт.
