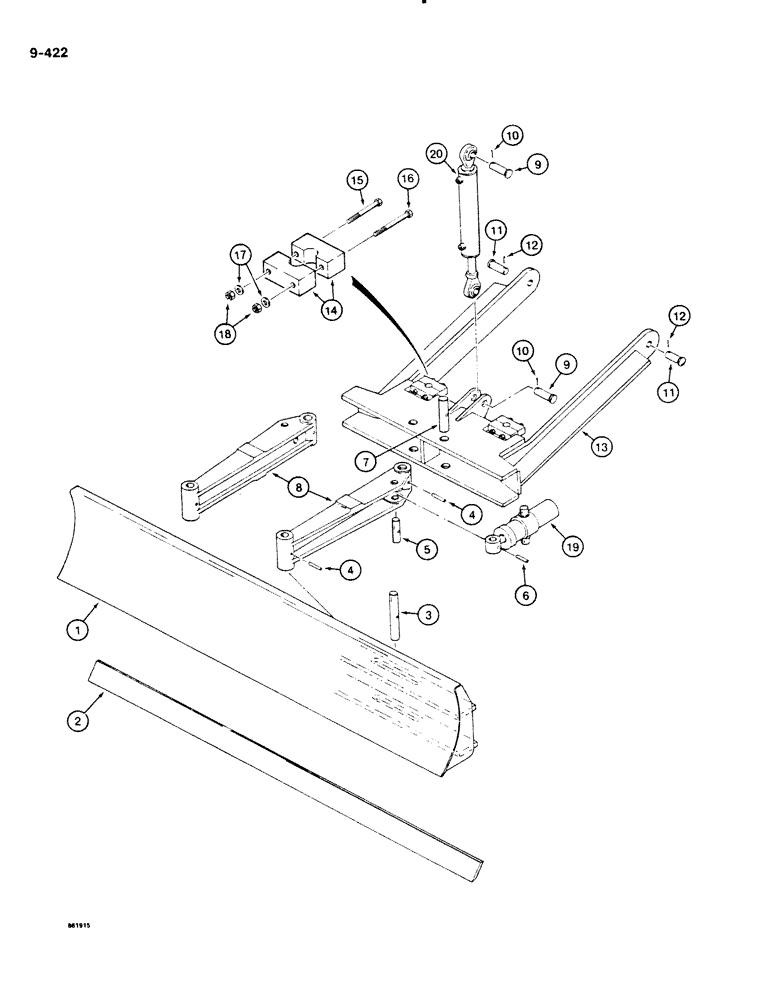

Запчасти Case DH4B (9-422) - BACKFILL BLADE AND MOUNTING, REAR MOUNTED WITH REAR PLOW (09) - CHASSIS/ATTACHMENTS

1

H648238

BLADE

BACKFILL BLADE ASSEMBLY - spoil return, rear mounted with rear plow, Includes: Ref. 2

1шт.

2

H209775

BLADE

CUTTING EDGE - backfill blade

1шт.

3

H249011

AXLE PIN

PIN - 1-1/4" x 7-3/4" long, backfill blade mounting

2шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

5

H248732

CYLINDER BLOCK

PIN - 1" x 3-5/8" long, backfill blade angling arm

2шт.

6

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

7

H248724

AXLE PIN

PIN - 1-1/4" x 5-1/4" long, mounting frame to backfill blade angling arm

2шт.

8

H248609

ARM

- backfill blade angling

2шт.

9

H67272

PIN,25.3mm OD x 84.93mm L

CLEVIS PIN - 1" x 2-25/32", special

2шт.

10

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

11

H37978

AXLE PIN

CLEVIS PIN - 1" x 2-1/4" long, special

2шт.

12

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

H645622

FRAME

ASSEMBLY - backfill blade mounting, Includes: Ref. 13-18

1шт.

13

NSS

NOT SOLD SEPARAT

FRAME - backfill blade mounting, order H645622 frame assembly

1шт.

14

H248716

CLAMP

- cylinder

8шт.

15

H718866

BOLT

BOLT - hex head, 3/8" - 16 NC x 3-1/4", grade 8, special

4шт.

16

H718874

BOLT

- hex head, 3/8" - 16 NC x 3-1/2", grade 8, special

4шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

18

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

19

H583542

CYLINDER BLOCK

CYILNDER ASSEMBLY - backfill blade angle, parts list Figure 8-246

2шт.

20

H621367

CYLINDER BLOCK

CYLINDER ASSEMBLY - backfill blade lift, parts list Figure 8-242

1шт.
