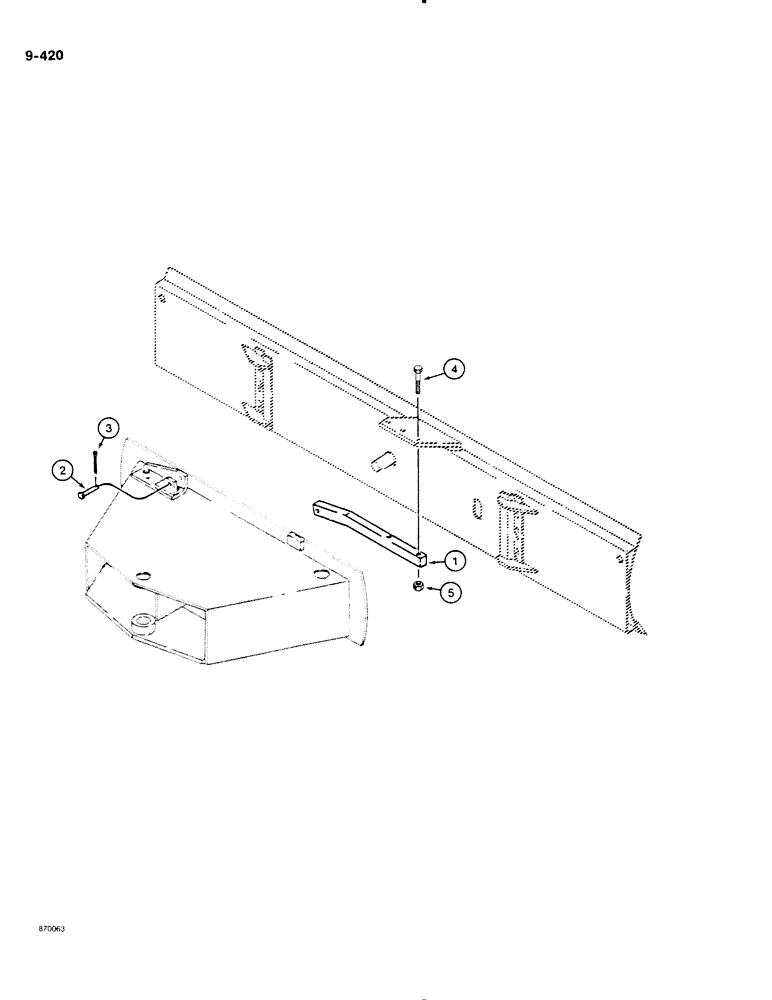

Запчасти Case DH4B (9-420) - BACKFILL BLADE LINK KIT (09) - CHASSIS/ATTACHMENTS

H672640

LINK ASSY.

KIT - backfill blade link, used to adapt a 6-way backfill blade to a 4-way blade machine, Includes: Ref. 1-5

1шт.

1

H434410

LINK

- backfill blade to backfill blade tilt frame

1шт.

2

H382416

CLEVIS PIN

- 1/2" x 2" long

1шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

4

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

PIN PICTURED IN THE BACK OF THE BLADE IS H426924

1шт.
