(9-418) - 6-WAY BACKFILL BLADE AND MOUNTING, PIN 1242820 AND AFTER

Запчасти Case DH4B (9-418) - 6-WAY BACKFILL BLADE AND MOUNTING, PIN 1242820 AND AFTER (09) - CHASSIS/ATTACHMENTS

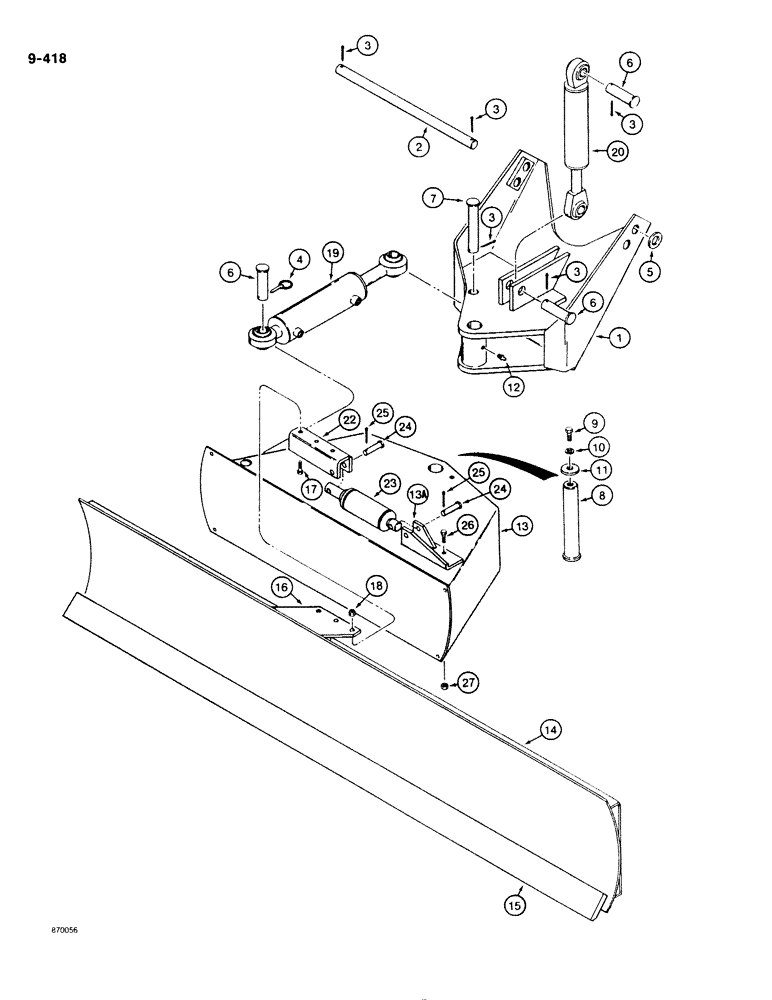

Схема запчастей Case DH4B - (9-418) - 6-WAY BACKFILL BLADE AND MOUNTING, PIN 1242820 AND AFTER (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H666958

PIVOT

FRAME - backfill blade mounting

1шт.

2

H383505

SHAFT

- pivot

1шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

5шт.

4

A30338

PIN

- lock

1шт.

5

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

6

H70623

AXLE PIN

CLEVIS PIN - 1" x 3-1/2" long

3шт.

7

H80440

AXLE PIN

CLEVIS PIN - 1" x 5-7/8" long

1шт.

8

H4333345

PIN - backfill blade pivot

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

H333278

WASHER

CAP - backfill blade pivot pin

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

1шт.

13

H672598

MOUNTING PARTS

FRAME ASSEMBLY - backfill blade tilt, Includes: Ref. 13A

1шт.

13a

H672152

SUPPORT

BRACKET - backfill blade tilt cylinder, rod end

1шт.

14

H672599

HALF BLADE

BACKFILL BLADE ASSEMBLY - spoil return, Includes: Ref. 15, 16

1шт.

15

H209775

BLADE

CUTTING EDGE - backfill blade

1шт.

16

H384289

PLATE

- backfill blade stop, Serial Range: bolts-bracket

1шт.

17

113-2223

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex head, 3/8" - 16 NC x 1-1/2", plated, grade 8

3шт.

18

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

19

H672379

CYLINDER BLOCK

CYLINDER ASSEMBLY - backfill blade angle, 4-way/6-way, parts list Figure 8-244

1шт.

20

H666883

CYLINDER ASSY.

CYLINDER ASSEMBLY - backfill blade list, 4-way/6-way, parts list Figure 8-240

1шт.

22

H644443

SUPPORT

BRACKET - backfill blade tilt cylinder, closed end

1шт.

23

H621060

CYLINDER BLOCK

CYLINDER - backfill blade tilt, contains no serviceable components

1шт.

24

H382416

CLEVIS PIN

- 1/2" x 2" long

2шт.

25

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.
