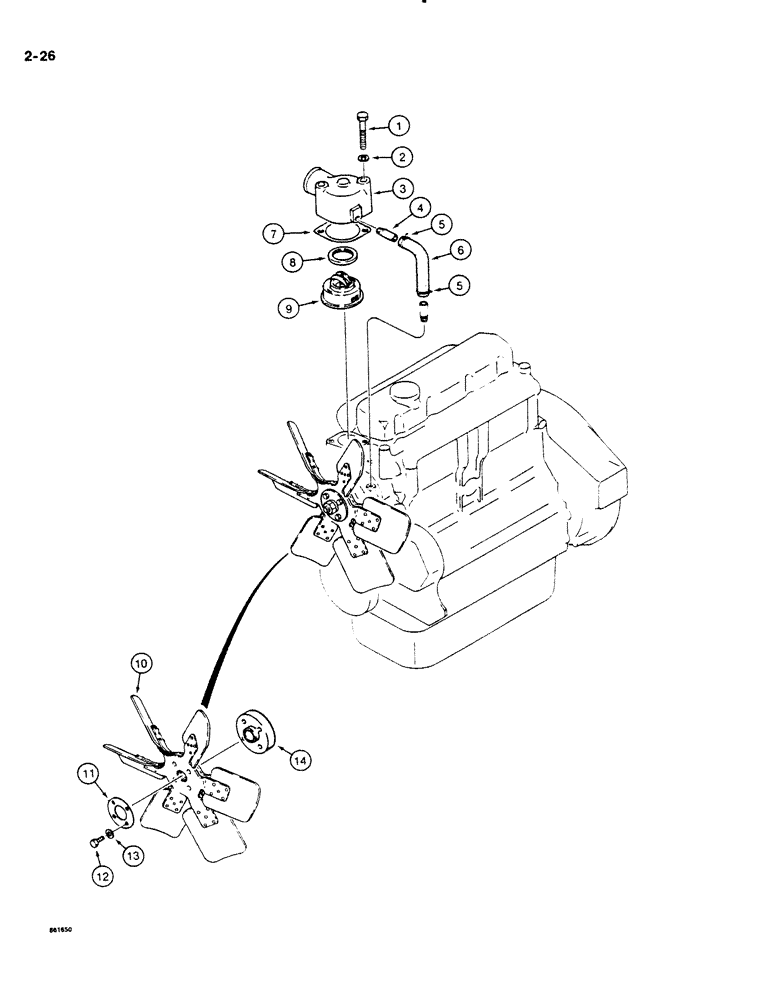

Запчасти Case DH4B (2-26) - THERMOSTAT AND FAN (02) - ENGINE

1

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

2

892-1108

LOCK WASHER,M8

plated M8

2шт.

H664680

ELBOW

COVER ASSEMBLY - thermostat, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - thermostat

1шт.

4

H412189

PIPE

CONNECTOR - straight, housing to bypass hose

1шт.

5

H410969

CLAMP

- bypass hose

2шт.

6

H411108

HOSE

Bypass

1шт.

7

H411090

GASKET

- thermostat cover

1шт.

8

H411116

GASKET

- thermostat

1шт.

9

H411124

THERMOSTAT

- cooling systam

1шт.

10

A173784

FAN

- engine cooling

1шт.

11

H412205

PLATE

- fan mounting

1шт.

12

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

Full Thd Hex, M8 x 40, 8.8

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

H421404

FAN

SPACER - fan

1шт.
