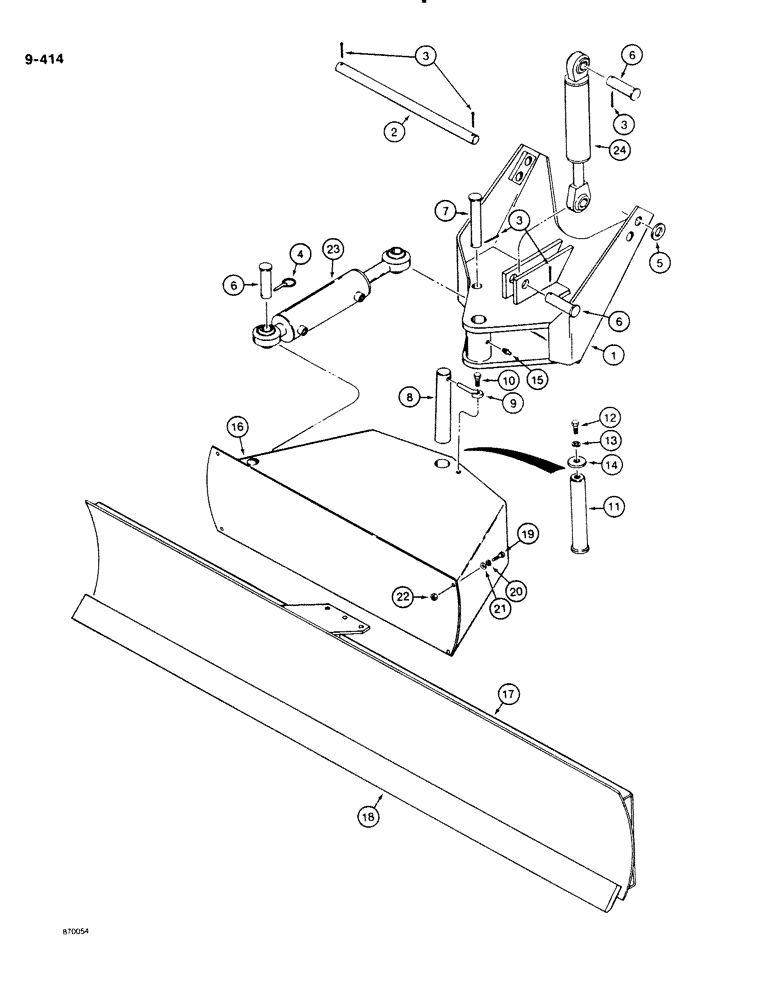

Запчасти Case DH4B (9-414) - 4-WAY BACKFILL BLADE AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H666958

PIVOT

FRAME - backfill blade mounting and pivot

1шт.

2

H383505

SHAFT

- pivot

1шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

5шт.

4

A30338

PIN

- lock

1шт.

5

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

6

H70623

AXLE PIN

CLEVIS PIN - 1" x 3-1/2" long

3шт.

7

H80440

AXLE PIN

CLEVIS PIN - 1" x 5-7/8" long

1шт.

8

H369892

AXLE PIN

PIN - backfill blade pivot, if used

1шт.

9

H36509

AXLE PIN

PIN - pivot pin retaining, if used

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

11

H433345

AXLE PIN

PIN - backfill blade pivot, if used

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

14

H333278

WASHER

CAP - backfill blade pivot pin, if used

1шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

1шт.

16

H638536

BLADE

FRAME - backfill blade tilt

1шт.

17

H649350

HALF BLADE

BACKFILL BLADE ASSEMBLY - spoil return, Includes: Ref. 18

1шт.

18

H209775

BLADE

CUTTING EDGE - backfill blade

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

22

131-608

NUT

- hex, 3/8" - 16 NC, special

4шт.

23

H672379

CYLINDER BLOCK

CYLINDER ASSEMBLY - backfill blade angle, 4-way/6-way, parts list Figure 8-244

1шт.

24

H666883

CYLINDER ASSY.

CYLINDER ASSEMBLY - backfill blade lift, 4-way/6-way, parts list Figure 8-240

1шт.
