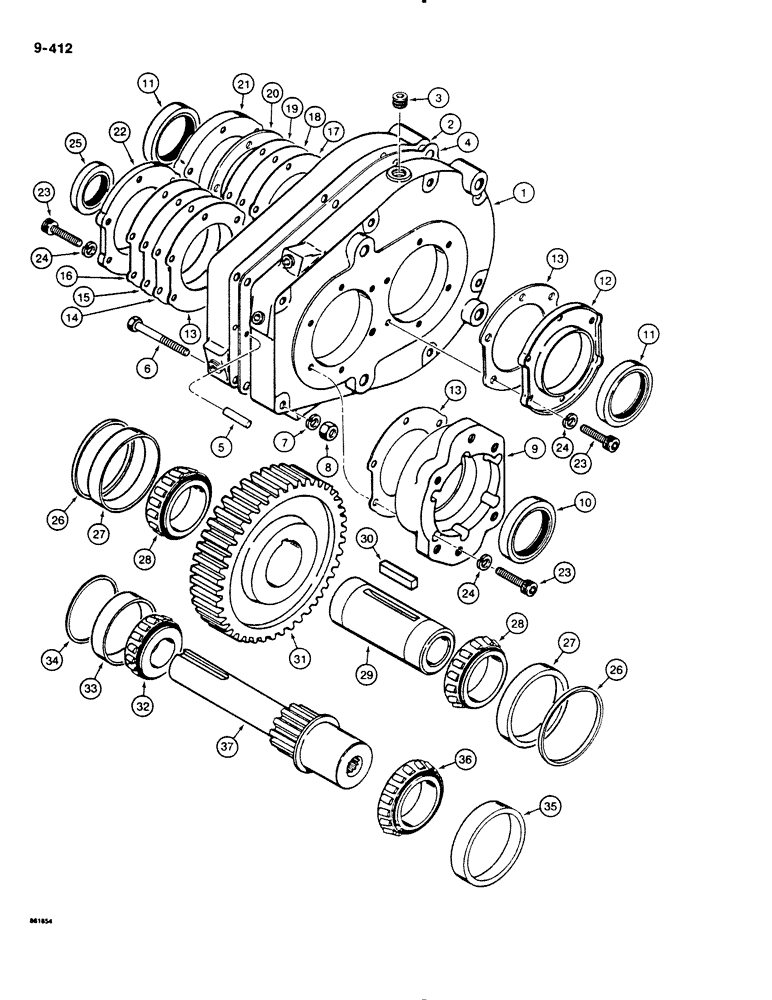

Запчасти Case DH4B (9-412) - TRENCHER DRIVE GEARBOX (09) - CHASSIS/ATTACHMENTS

H650952

GEARBOX ASSY

GEARBOX ASSEMBLY - trencher drive, Terrell No. HD1-BS-003, Includes: Ref. 1-38

1шт.

1

H394742

HOUSING

- gearbox, front, pump side

1шт.

2

H393934

HOUSING

- gearbox, rear, plain half

1шт.

3

221-1843

PLUG

- hex socket head, 3/8" NPT

8шт.

4

H394767

GASKET

- gearbox housing

1шт.

5

H37914

DOWEL PIN - special, housing

2шт.

6

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

9

H394882

FLANGE

- trencher drive pump mounting

1шт.

10

A30507

OIL SEAL

SEAL - oil, input, pump

1шт.

11

H362830

SEAL ASSY.

SEAL - oil, output shaft

2шт.

12

H393868

COVER

- output shaft, front housing

1шт.

13

H394775

SHIM,.005" Thk

(0.13 mm), If used .005" Thk

3шт.

14

H394775

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

15

H394783

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

16

H394791

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

17

H394817

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

18

H394817

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

19

H394833

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

20

H394841

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

21

H393900

COVER

- output shaft, rear housing

1шт.

22

H393868

COVER

- input shaft, rear housing

1шт.

23

165-153

HEX SOC SCREW,5/16" - 18 x 1"

BOLT - hex socket head, 5/16" - 18 NC x 1", plated

24шт.

24

192-404

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

24шт.

25

824097C91

SEAL

- oil, input shaft, rear housing

1шт.

26

H394858

SPACER, RING

SPACER - bearing, output shaft

2шт.

27

A50179

BEARING CUP

CUP - cone

2шт.

28

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE - tapered roller bearing

2шт.

29

H373142

SHAFT

OUTPUT SHAFT - trencher drive gearbox

1шт.

30

H373209

KEY

- 3/8" square x 1-7/8", output shaft

1шт.

31

H373134

GEAR WHEEL

GEAR - output shaft

1шт.

32

H758169

ROLLER BEARING

CONE - tapered roller bearing

1шт.

33

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - tapered roller bearing

1шт.

34

H394866

BEARING

SPACER - bearing, input shaft

1шт.

35

A50179

BEARING CUP

CUP - tapered roller bearing

1шт.

36

H758151

BEARING

CONE - tapered roller bearing

1шт.

37

H389239

PINION

INPUT SHAFT - trencher drive gearbox

1шт.

38

D57822

BREATHER

- trencher drive gearbox, not shown

1шт.
