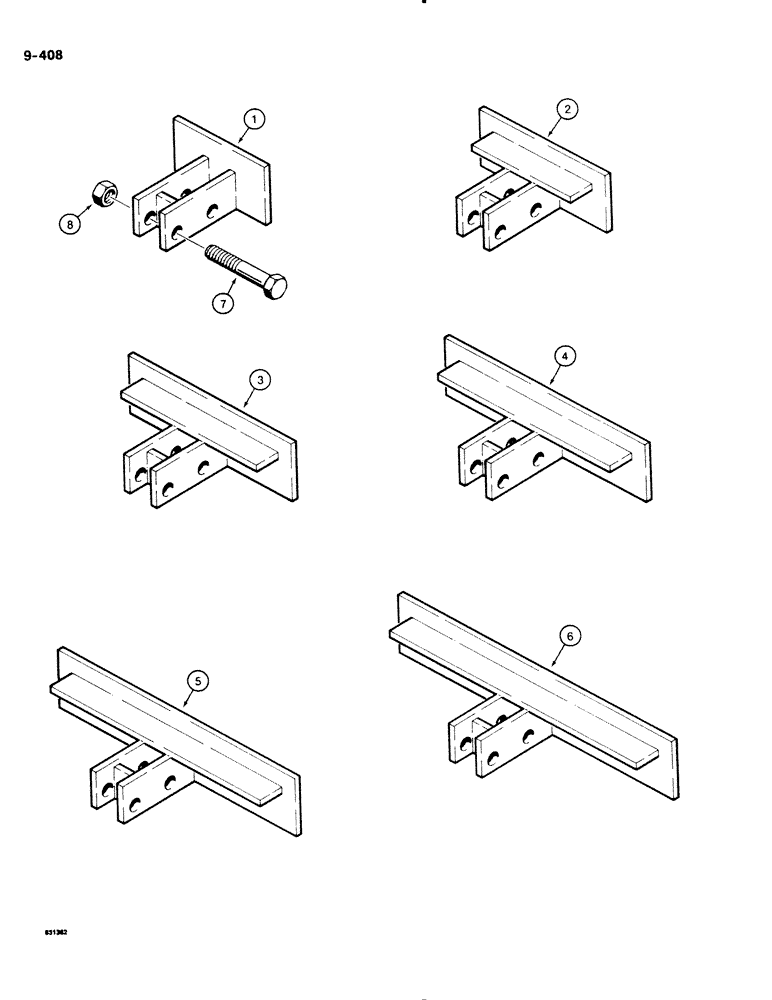

Запчасти Case DH4B (9-408) - DRAG PLATES - 50,000 LB. STANDARD CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

H624304

HARDWARE

PLATE - drag, 5" (127 mm) wide, for use with 50,000 LB. standard chainline

1шт.

2

H624312

LINK

PLATE - drag, 7" (178 mm) wide, for use with 50,000 LB. standard chainline

1шт.

3

H624320

LINK

PLATE - drag, 9" (229 mm) wide, for use with 50,000 LB. standard chainline

1шт.

4

H624338

LINK

PLATE - drag, 11" (279 mm) wide, for use with 50,000 LB. standard chainline

1шт.

5

H624346

DRAG LINK

PLATE - drag, 13" (330 mm) wide, for use with 50,000 LB. standard chainline

1шт.

6

H624353

LINK

PLATE - drag, 15" (381 mm) wide, for use with 50,000 LB. standard chainline

1шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

8

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.
