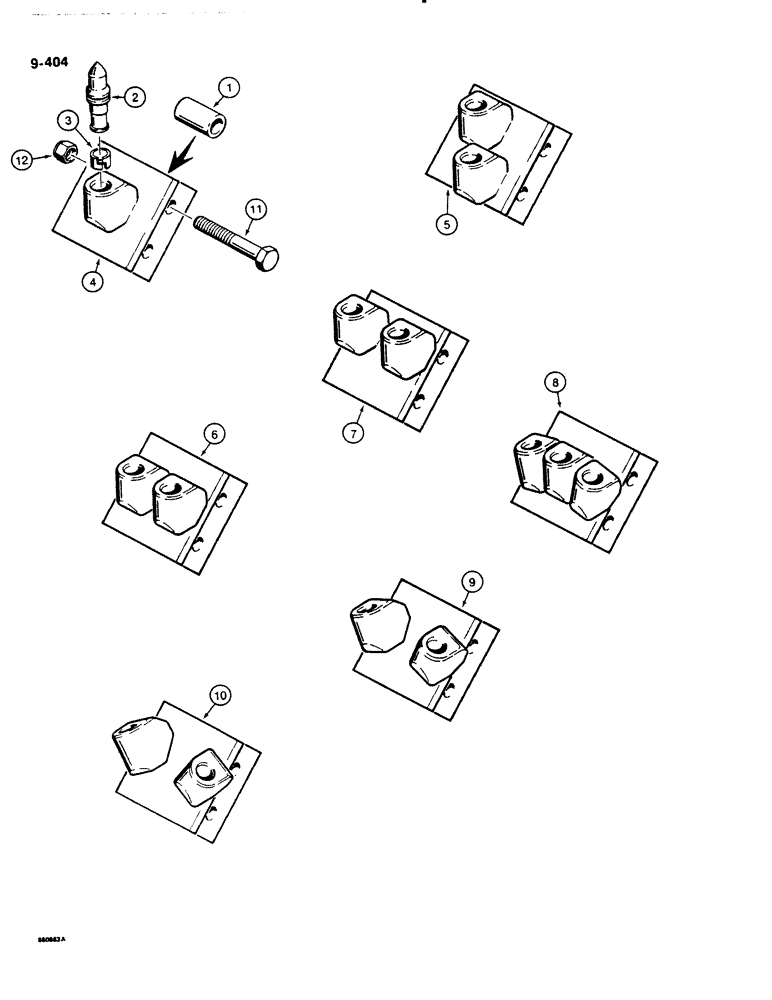

Запчасти Case DH4B (9-404) - ROCK AND FROST DIGGING TEETH, 50,000 LB. CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

H138008

SPACER

- cutter bit

1шт.

2

H270983

TOOTH

BIT - cutter, C-1 bit, standard tip

1шт.

2

H283770

TOOTH

BIT - cutter, C-3 bit, heavy-duty tip, Includes: Ref. 3

1шт.

3

H283754

CLIP

- bit retaining, included with H270983 and H283770 cutter bits

1шт.

4

H595629

BRACKET

- cutter bit, single

1шт.

5

H595637

BRACKET

- cutter bit, 1" (25 mm) bit spacing

1шт.

6

H595645

BRACKET

- cutter bit, 2" (51 mm) bit spacing

1шт.

7

H595652

BRACKET

- cutter bit, 3" (76 mm) bit spacing

1шт.

8

H595660

BRACKET

- cutter bit, 4" (102 mm) bit spacing

1шт.

9

H595678

BRACKET

- cutter bit, 5" (127 mm) bit spacing

1шт.

10

H595686

BRACKET

- cutter bit, 6" (152 mm) bit spacing

1шт.

11

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex head, 5/8" - 11 NC x 3-3/4", plated

1шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.
