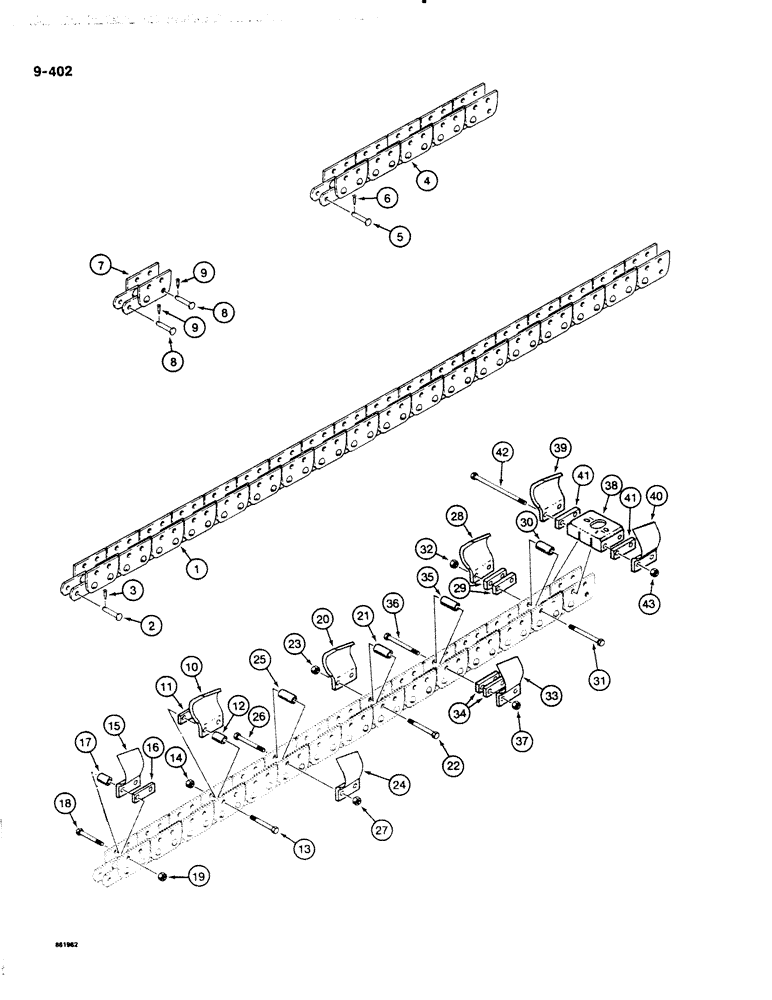

Запчасти Case DH4B (9-402) - ANTI-BACKFLEX DIGGING CHAINS AND TEETH, 70,000 LB. CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

H644237

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 56 pitches, Includes: Ref. 2, 3

1шт.

2

H283663

AXLE PIN

PIN - connector, chain

1шт.

3

H297655

AXLE PIN

PIN - connector pin retaining

1шт.

4

H644245

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches, Includes: Ref. 5, 6

1шт.

5

H283663

AXLE PIN

PIN - connector, chain

1шт.

6

H297655

AXLE PIN

PIN - connector pin retaining

1шт.

7

H644252

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 2 pitches, Includes: Ref. 8, 9

1шт.

8

H283663

AXLE PIN

PIN - connector, chain

1шт.

9

H297655

AXLE PIN

PIN - connector pin retaining

1шт.

10

H251389

TOOTH

- digging, left-hand

1шт.

11

H138990

SPACER

- tooth, flat

1шт.

12

H213496

SPACER

- tooth, tubular

1шт.

13

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

14

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

15

H251371

TOOTH

- digging, right-hand

1шт.

16

H138990

SPACER

- tooth, flat

1шт.

17

H213496

SPACER

- tooth, tubular

1шт.

18

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

19

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

20

H251389

TOOTH

- digging, left-hand

1шт.

21

H138982

SPACER

- tooth, tubular

1шт.

22

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4", plated

1шт.

23

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

24

H251371

TOOTH

- digging, right-hand

1шт.

25

H138982

SPACER

- tooth, tubular

1шт.

26

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4", plated

1шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

28

H251389

TOOTH

- digging, left-hand

1шт.

29

H251504

SPACER

- tooth, flat

1шт.

30

H138982

SPACER

- tooth, tubular

1шт.

31

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex head, 5/8" - 11 NC x 5", plated

1шт.

32

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

33

H251371

TOOTH

- digging, right-hand

1шт.

34

H251504

SPACER

- tooth, flat

1шт.

35

H138982

SPACER

- tooth, tubular

1шт.

36

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex head, 5/8" - 11 NC x 5", plated

1шт.

37

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.
