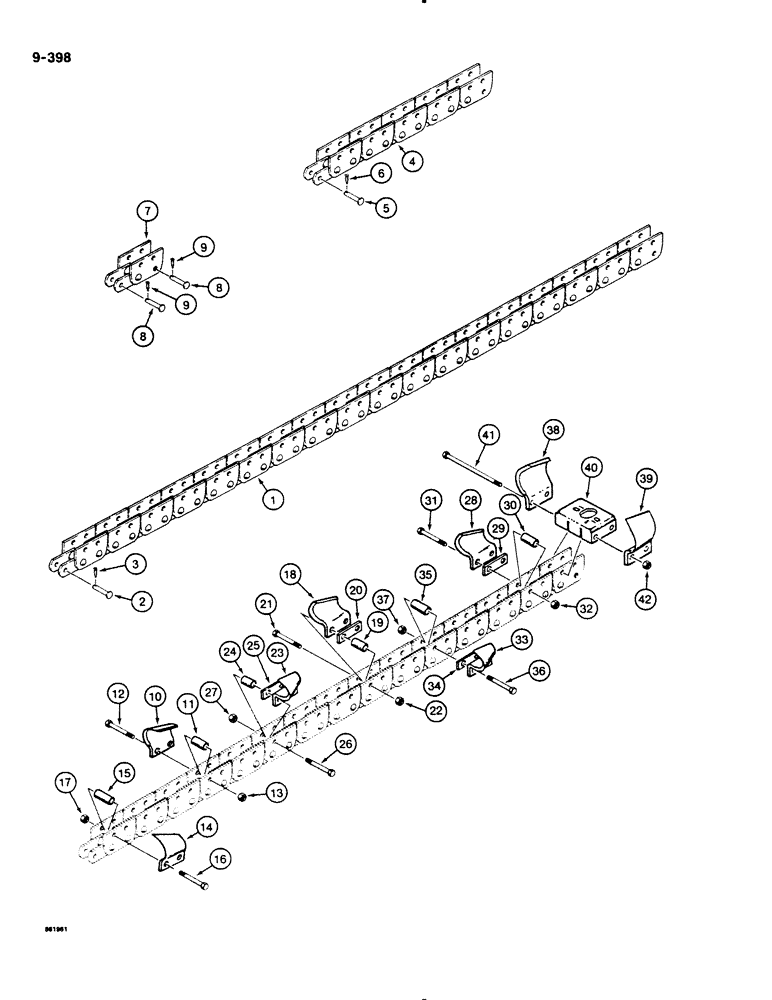

Запчасти Case DH4B (9-398) - ANTI-BACKFLEX DIGGING CHAINS AND TEETH, 50,000 LB. CHAINLINE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H644260
CHAIN (CE)
CHAIN ASSEMBLY - digging, anti-backflex, 48 pitches, Includes: Ref. 2, 3
1шт.
2
H145011
AXLE PIN
PIN - connector
1шт.
3
H170399
LOCK PIN
PIN - connector pin retaining
1шт.
4
H644278
CHAIN (CE)
CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches, Includes: Ref. 5, 6
1шт.
5
H145011
AXLE PIN
PIN - connector
1шт.
6
H170399
LOCK PIN
PIN - connector pin retaining
1шт.
7
H644286
CHAIN (CE)
CHAIN ASSEMBLY - digging, anti-backflex, 2 pitches, Includes: Ref. 8, 9
1шт.
8
H145011
AXLE PIN
PIN - connector
1шт.
9
H170399
LOCK PIN
PIN - connector pin retaining
1шт.
10
H151241
TOOTH
- digging, mud, right-hand
1шт.
11
H138008
SPACER
- long
1шт.
12
113-628
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
Hex, 5/8"-11 x 3 1/2", G5
1шт.
13
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated
1шт.
14
H151258
TOOTH
- digging, mud, left-hand
1шт.
15
H138008
SPACER
- long
1шт.
16
113-628
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
Hex, 5/8"-11 x 3 1/2", G5
1шт.
17
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated
1шт.
18
H131268
TOOTH
- standard, right-hand
1шт.
19
H138016
SPACER
- short
1шт.
20
H130815
SPACER
- flat
1шт.
21
113-601
BOLT,Hex, 5/8" - 11 x 3", Gr 5
1шт.
22
131-1130
LOCK NUT,5/8"-11, GA
NUT- hex, self-locking, 5/8" - 11 NC, plated
1шт.
23
H131276
TOOTH
- standard, left-hand
1шт.
24
H138016
SPACER
- short
1шт.
25
H130815
SPACER
- flat
1шт.
26
113-601
BOLT,Hex, 5/8" - 11 x 3", Gr 5
1шт.
27
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated
1шт.
28
H131268
TOOTH
- standard, right-hand
1шт.
29
H131268
TOOTH
SPACER - flat
1шт.
30
H138008
SPACER
- long
1шт.
31
113-628
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
Hex, 5/8"-11 x 3 1/2", G5
1шт.
32
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated
1шт.
33
H131276
TOOTH
- standard, left-hand
1шт.
34
H130815
SPACER
- flat
1шт.
35
H138008
SPACER
- long
1шт.
36
113-628
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
Hex, 5/8"-11 x 3 1/2", G5
1шт.
37
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated
1шт.
Выбрано товаров: 37
