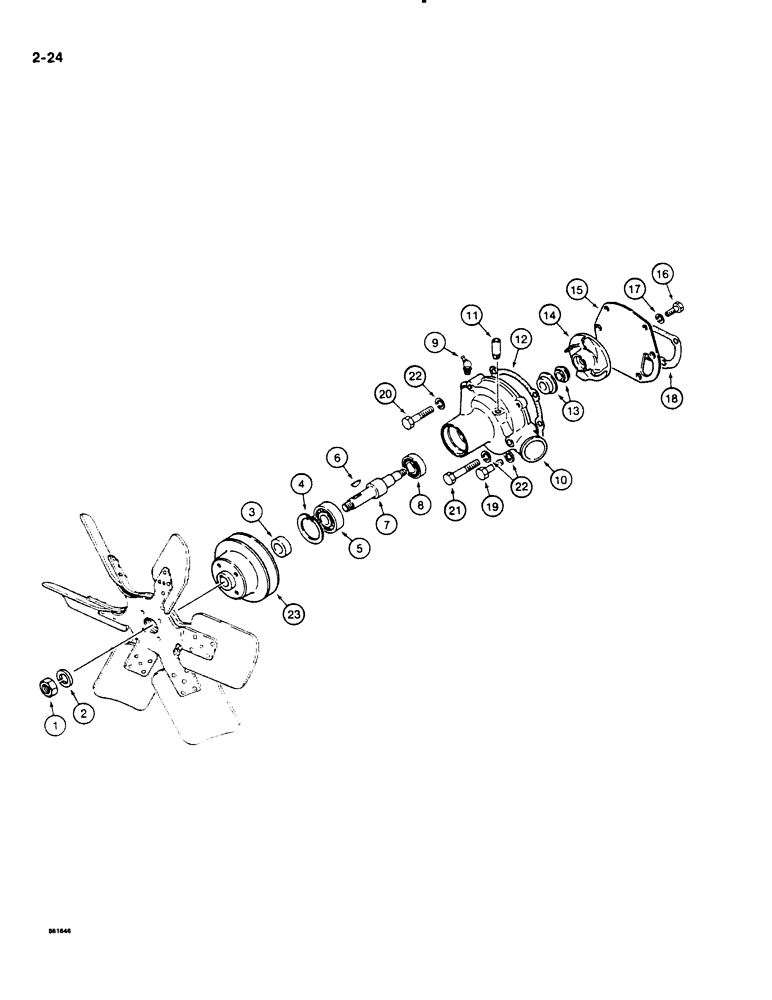

Запчасти Case DH4B (2-24) - WATER PUMP, USED ON ENGINE SERIAL NUMBER 134569 AND AFTER (02) - ENGINE

N9953

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 1-17

1шт.

1

525-5105

NUT,M14 x 1.5, Cl 8

- hex, 14 mm - 1.5 (8), plated

1шт.

2

892-1114

LOCK WASHER,M14

WASHER - lock, 14 mm, plated

1шт.

3

N13321

SPACER

- water pump

1шт.

4

H758755

RING, SNAP

SNAP RING - bearing retaining

1шт.

5

N13319

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

- shaft, outer

1шт.

6

836-5075

WOODRUFF KEY,5mm x 7.5mm x 18.57mm

- 5 mm thick x 7.5 mm wide x 18.57 mm long

1шт.

7

H411074

SHAFT

- water pump

1шт.

8

N13318

BALL BEARING,17 mm ID x 12 mm

- water pump, inner

1шт.

9

N13320

FITTING

GREASE FITTING - special

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - water pump, order N9953 water pump assembly

1шт.

11

H412148

PIPE

- bypass inlet

1шт.

12

H412155

GASKET

- housing

1шт.

13

H411066

SEAL

- two-piece, impeller

1шт.

14

H412163

IMPELLER

- water pump

1шт.

15

H412171

COVER

- water pump

1шт.

16

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

2шт.

17

892-1108

LOCK WASHER,M8

plated M8

2шт.

18

H411058

GASKET

- water pump to engine, not included with water pump

1шт.

19

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex head, 10 mm - 1.5 x 35 mm (8.8), plated, Not included with water pump

2шт.

20

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex head, 10 mm - 1.5 x 45 mm (8.8), plated, Not included with water pump

1шт.

21

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Not included with water pump Hex, M10 x 60, 8.8

1шт.

22

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm plated, not included with water pump

4шт.

23

H411041

PULLEY

- water pump, not included with water pump

1шт.
