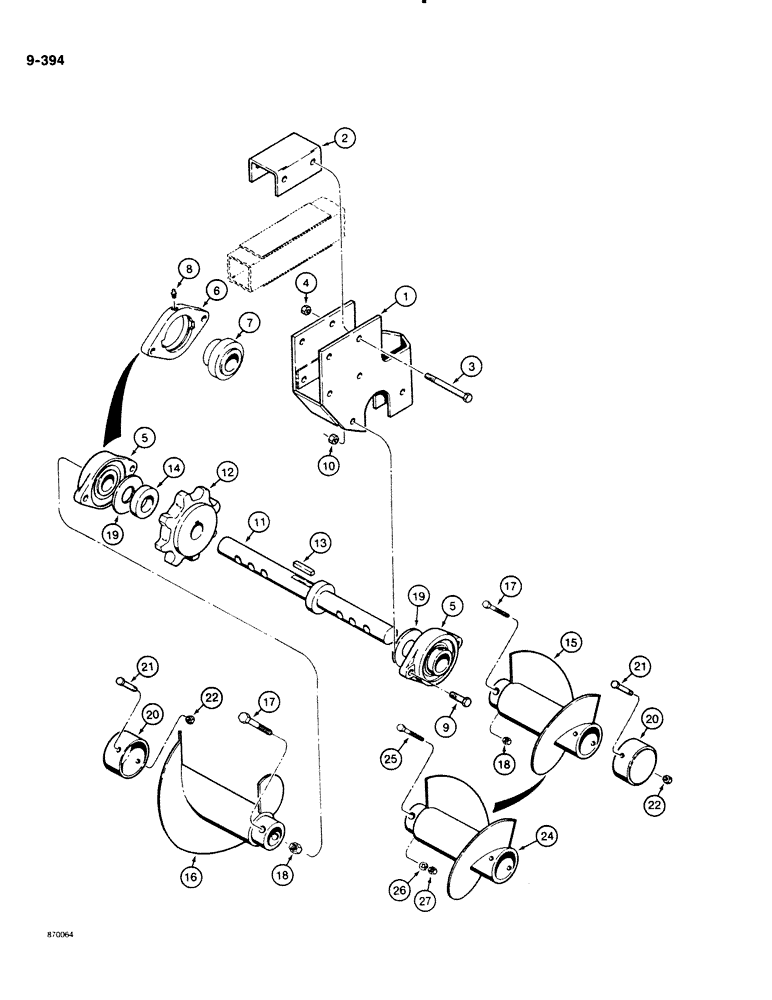

Запчасти Case DH4B (9-394) - AUGER (09) - CHASSIS/ATTACHMENTS

1

H641522

BRACKET

- auger mounting

1шт.

2

H375857

CHANNEL

- auger mounting

1шт.

3

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

4шт.

4

131-1130

LOCK NUT,5/8"-11, GA

NUT- hex, self-locking, 5/8" - 11 NC, plated

4шт.

5

H672178

FLANGED BEARING

BEARING ASSEMBLY - auger, Includes: Ref. 6-8

2шт.

6

H397539

FLANGE

BEARING - auger (Replaces H758615) FLANGE

1шт.

7

H758615

BEARING, BALL

FLANGE - auger bearing (Replaces H397539)

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

4шт.

10

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" 11 NC, plated

4шт.

11

H647289

SHAFT

- auger drive

1шт.

12

H375899

PINION

SPROCKET - auger drive, used on models with 50,000 lb. chainline

1шт.

12

H375881

DRIVE SPROCKET

SPROCKET - auger drive, used on models with 70,000 lb. chainline

1шт.

13

H274829

KEY

- square. 1/2" x 2-1/2" long

1шт.

14

H375790

RING

SPACER - sprocket

1шт.

15

H642454

AUGER

- spoil removal, left-hand

1шт.

16

H642447

AUGER

- spoil removal, right-hand

1шт.

17

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

2шт.

19

H191148

SHIM,.031" Thk

(0.79 mm), Auger bearing .031" Thk

1шт.

19

H191155

SHIM,.062" Thk

(1.57 mm), Auger bearing .062" Thk

1шт.

20

H570507

CYLINDER END CAP

CAP - auger, if used

2шт.

21

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex head, 5/8" - 11 NC x 5", plated, if used

2шт.

22

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated if used

2шт.

23

H570432

AUGER

- spoil removal, extension, right-hand, not shown, if used

1шт.

24

H570499

EXTENSION

AUGER - spoil removal, extension, left-hand, if used

1шт.

25

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex head, 5/8" - 11 NC x 5", plated, if used, auger extension parts

2шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , If used, auger extension parts 5/8"

2шт.

27

280374

NUT,Hex, 5/8" - 11, Gr 5

If used, auger extension parts 5/8"-11, G5

2шт.
