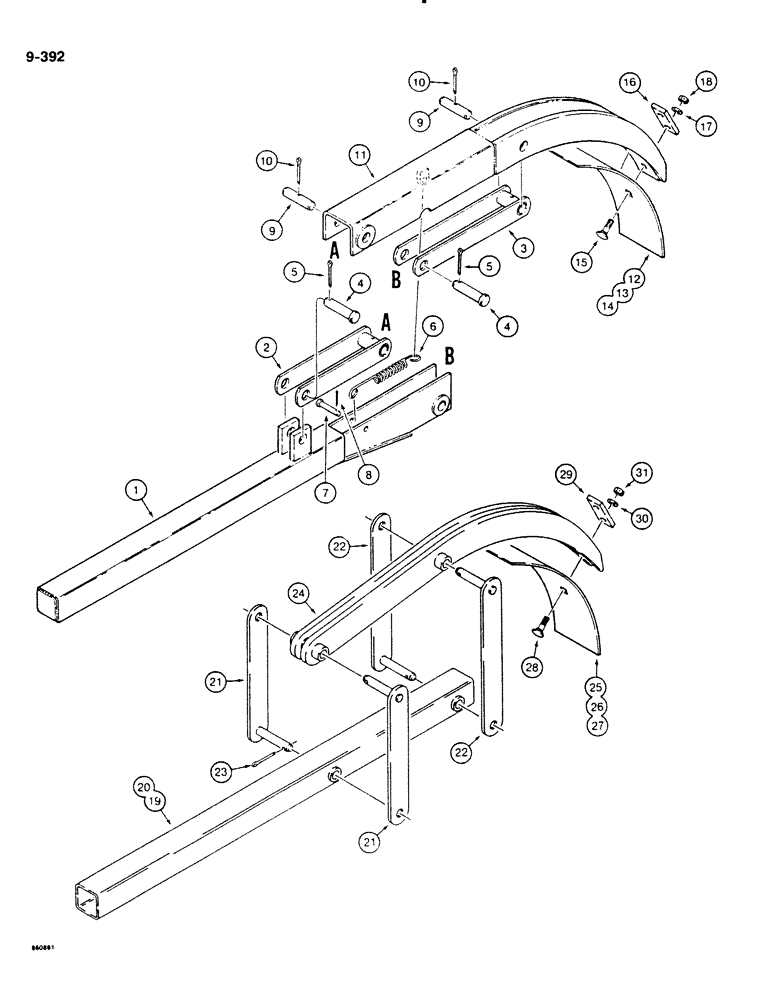

Запчасти Case DH4B (9-392) - CRUMBER BOOM ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

H542894

BOOM

- crumber, 3 foot depth, if used, with springs

1шт.

1

H542902

BOOM

- crumber, 4 foot depth, if used, with springs

1шт.

1

H538553

BOOM

- crumber, 5 foot depth, if used, with springs

1шт.

1

H643569

BOOM

- crumber, 6 foot depth, if used, with springs

1шт.

2

H536664

DRAG LINK

LINK - short, upper, booms with springs

1шт.

3

H532440

DRAG LINK

LINK - long, lower, booms with springs

1шт.

4

H54320

AXLE PIN,19.05mm OD x 79.38mm L

CLEVIS PIN - special, link retaining, 3/4" x 2-7/8" long, booms with springs

2шт.

5

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2", Booms with springs

2шт.

6

H128280

VALVE SPRING

SPRING - crumber booms with springs

1шт.

7

H54395

AXLE PIN,9.47mm OD x 60.33mm L

CLEVIS PIN - special, spring retaining, 3/8" x 2-1/4" long, booms with springs

1шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Booms with springs 1/8" x 1"

1шт.

9

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN - blade retaining, booms with springs

2шт.

10

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), , Booms with springs 3/16" x 1 1/2"

2шт.

11

H536656

BRACKET

- crumber blade, booms with springs

1шт.

12

H127480

BLADE

- crumber, 6" width, if used, booms with springs

1шт.

13

H60087

BLADE

- crumber, 8" width, if used, booms with springs

1шт.

14

H60103

BLADE

- crumber, 10" width, if used, booms with springs

1шт.

15

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

BOLT, CARRIAGE, , Booms with springs Short NK, 1/2"-13 x 4", G2

2шт.

16

H309450

SPACER

- blade, booms with springs

1шт.

17

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, booms with springs

2шт.

18

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated, booms with springs

2шт.

19

H659177

TUBE

BOOM - crumber, 4 foot depth, if used, without springs

1шт.

20

H659185

TUBE

BOOM - crumber, 5 foot depth, if used, without springs

1шт.

20

H659193

TUBE

BOOM - crumber, 6 foot depth, if used, without springs

1шт.

21

H659144

LINK

- short, booms without springs

2шт.

22

H659151

LINK

- long, booms without springs

2шт.

23

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , Booms without springs 3/16" x 1 1/4"

4шт.

24

H659201

SUPPORT

BRACKET - crumber blade, booms without springs

1шт.

25

H127480

BLADE

- crumber, 6" width, if used, booms without springs

1шт.

26

H60087

BLADE

- cumber, 8" width, if used, booms without springs

1шт.

27

H60103

BLADE

- crumber, 10" width, if used, booms without springs

1шт.

28

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

BOLT, CARRIAGE, , Booms without springs Short NK, 1/2"-13 x 4", G2

2шт.

29

H309450

SPACER

- blade, booms without springs

1шт.

30

195-533

WASHER,1/2", SAE

- flat, 1/2', plated, booms without springs

2шт.

31

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated, booms without springs

2шт.
