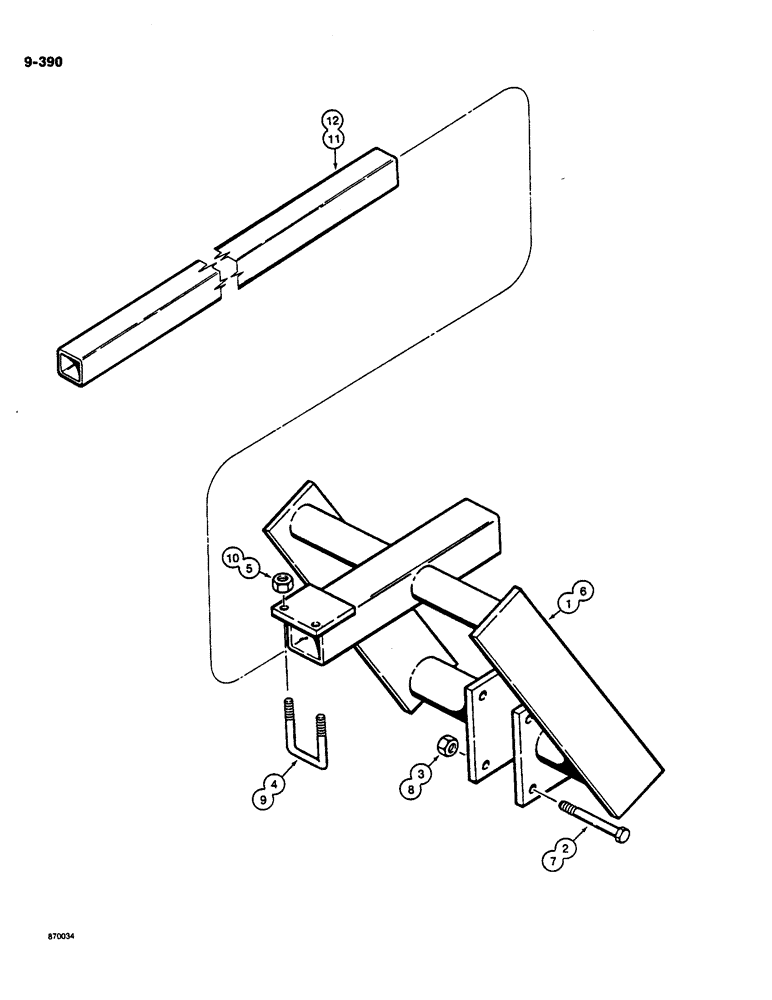

Запчасти Case DH4B (9-390) - CRUMBER BOOM AND DIGGING CHAIN GUARD MOUNTING BRACKET (09) - CHASSIS/ATTACHMENTS

1

H644104

MOUNTING PARTS

BRACKET - boom, crumber attachment, see figure 9-393 for crumber

1шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated, models with crumber

4шт.

3

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated, Models with crumber

4шт.

4

H54312

BOLT

U-BOLT - 1/2" - 13 NC, special, models with crumber

1шт.

5

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated, models with crumber

2шт.

6

H644104

MOUNTING PARTS

BRACKET - digging chain guard mounting, models without crumber

1шт.

7

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated, models without crumber

4шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated, Models without crumber

4шт.

9

H54312

BOLT

U-BOLT - 1/2" - 13 NC, special, models without crumber

1шт.

10

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated, models without crumber

2шт.

11

H672301

GUARD ASSY.

GUARD - digging chain, trencher, used on models with 3 foot or 4 foot bottom, if used, includes warning decals, see figure 9-503, models without crumber

1шт.

12

H672300

SAFETY BELT

GUARD - digging chain, trencher, used on models with 5 foot or 6 foot boom, if used, includes warning decals, see figure 9-503, models without crumber

1шт.
