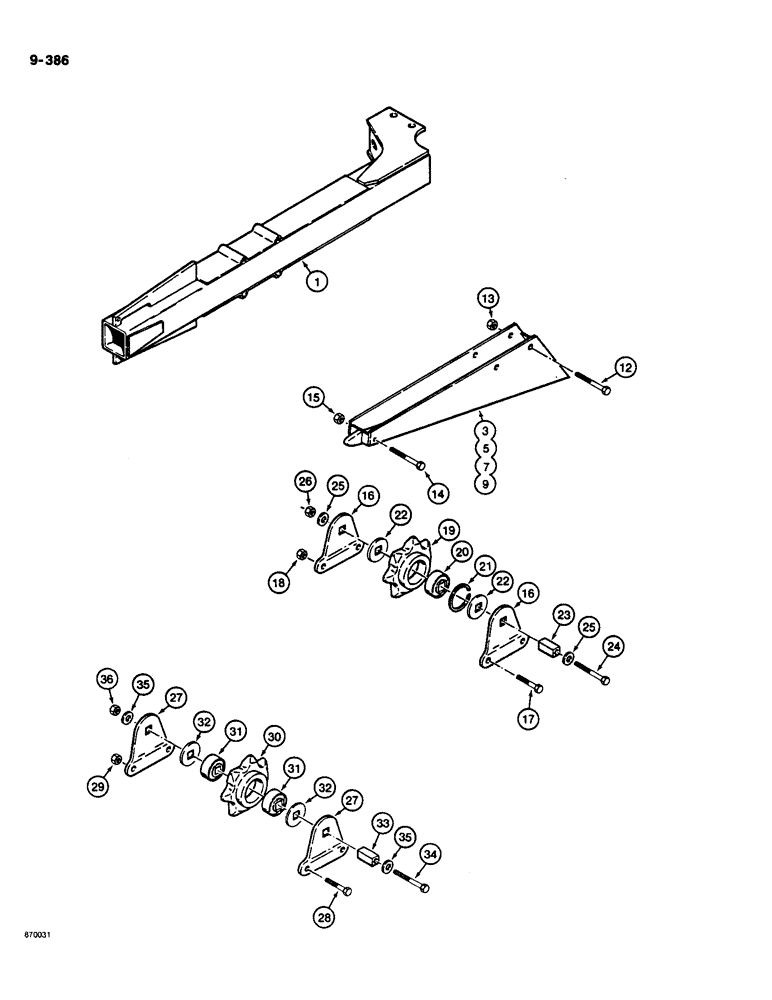

Запчасти Case DH4B (9-386) - TRENCHER BOOMS, SPROCKETS, AND CHANNELS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H644773
BOOM
UNIBOOM - trencher, 36" 9914 mm) digging depth, 51-1/2" (1309 mm) long, channel or sprocket, uses 1 sprocket, uses 1 sprocket on top and 1 sprocket or channel on bottom
1шт.
1
H644781
BOOM
UNIBOOM - trencher, 48" (1220 mm) digging depth, 65-3/8" (1661 mm) long channel or sprocket, uses 1 sprocket on top and 1 sprocket or channel on bottom
1шт.
1
H644062
BOOM
UNIBOOM - trencher, 60" (1524 mm) digging depth, 79-1/4" (2013mm) long, channel or sprocket, uses 2 sprockets on top and 2 sprockets or 1 channel on bottom
1шт.
1
H647271
BOOM
UNIBOOM - trencher, 72" (1829 mm) digging depth, 93-1/8" (2365mm) long, channel or sprocket, uses 2 sprockets on top and 2 sprockets or 1 channel on bottom, Includes: Ref. 2
1шт.
2
H115592
WEAR PLATE
- trencher boom, not shown
2шт.
3
H644732
CHANNEL
- boom, 36" (914 mm) digging depth, mounts to bottom of boom, Includes: Ref. 4
1шт.
4
H644757
STRIP
WEAR PLATE - channel, not shown
1шт.
5
H644740
CHANNEL
- boom, 48" (1220 mm) digging depth, mounts to bottom of boom (Replaces H644732), Includes: Ref. 6
1шт.
6
H644765
WEAR PLATE - channel, not shown
2шт.
7
H644054
CHANNEL
- boom, 60" (1524 mm) digging depth, mounts to bottom of boom (Replaces H644732), Includes: Ref. 8
1шт.
8
H644047
WEAR PLATE - channel, not shown
2шт.
9
H647263
CHANNEL
- boom, 72" (1829 mm) digging depth, mounts to bottom of boom (Replaces H644732), Includes: Ref. 10, 11
1шт.
10
H644047
WEAR PLATE - channel, long, not shown
2шт.
11
H647636
WEAR PLATE - channel, short, not shown
1шт.
12
113-619
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
Used with channel Hex, 5/8"-11 x 4 1/2", G5
2-4шт.
13
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated, Used with channel
2-4шт.
14
413-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
- hex head, 1/2" - 13 NC x 4-1/4", plated, used with channel
1шт.
15
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex, self-locking, 1/2" - 13 NC, plated, used with channel
1шт.
16
H381392
BRACKET
- sprocket mounting for units with 50,000 lb. chainline
8шт.
17
113-619
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
Sprockets and mounting for units with 50,000 lb. chainline Hex, 5/8"-11 x 4 1/2", G5
8шт.
18
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated, Sprockets and mounting for units with 50,000 lb. chainline
8шт.
H531251
PINION
SPROCKET ASSEMBLY - boom, 50,000 lb. chainline, and mounting, Includes: Ref. 19-21
4шт.
19
H115683
DRIVE SPROCKET
SPROCKET - boom, 50,000 lb. chainline, and mounting
1шт.
20
H747139
BALL BEARING
BEARING - sprocket, 50,000 lb. chainline, and mounting
1шт.
21
H33837
RING
RETAINING RING - bearing, 50,000 lb. chainline, sprockets and mounting
1шт.
22
H136663
SPACER
WASHER - special, sprocket and mounting for units with 50,000 lb. chainline
8шт.
23
H382275
SHAFT
- sprocket mounting, 50,000 lb. chainline
4шт.
24
113-619
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
50,000 lb, chainline sprockets and mounting Hex, 5/8"-11 x 4 1/2", G5
4шт.
25
195-108
WASHER,5/8"
- flat, , plated, sprockets and mounting for units with 50,000 lb. chainline 5/8"
8шт.
26
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated, Sprockets and mounting for units with 50,000 lb. chainline
4шт.
27
H381392
BRACKET
- sprocket mounting, sprockets and mounting for units with 70,000 LB. chainline
8шт.
28
113-619
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
Sprockets and mounting for units with 70,000 LB. chainline Hex, 5/8"-11 x 4 1/2", G5
8шт.
29
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated, Sprockets and mounting for units with 70,000 LB. chainline
8шт.
H544171
SPROCKET ASSY.
SPROCKET ASSEMBLY - boom, 70,000 lb. chainline, sprockets and mounting for units with 70,000 LB. chainline, Includes: Ref. 30, 31
4шт.
30
H132761
DRIVE SPROCKET
SPROCKET - boom, 700,000 lb. chainline, sprockets and mounting for units with 70,000 LB. chainline
1шт.
31
H747139
BALL BEARING
BEARING - sprocket, sprockets and mounting for units with 70,000 LB. chainline
2шт.
32
H136663
SPACER
WASHER - special, sprocket, sprockets and mounting for units with 70,000 LB. chainline
8шт.
33
H251025
BOOM
SHAFT - sprocket mounting, 70,000 lb. chainline
4шт.
34
113-647
BOLT,Hex, 5/8" - 11 x 5", Gr 5
- hex head, 5/8" - 11 NC x 5", plated, 70,000 lb, chainline, sprockets and mounting for units with 70,000 LB. chainline
4шт.
35
195-108
WASHER,5/8"
- flat, , plated, sprockets and mounting for units with 70,000 LB. chainline 5/8"
8шт.
36
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated, Sprockets and mounting for units with 70,000 LB. chainline
4шт.
Выбрано товаров: 41
