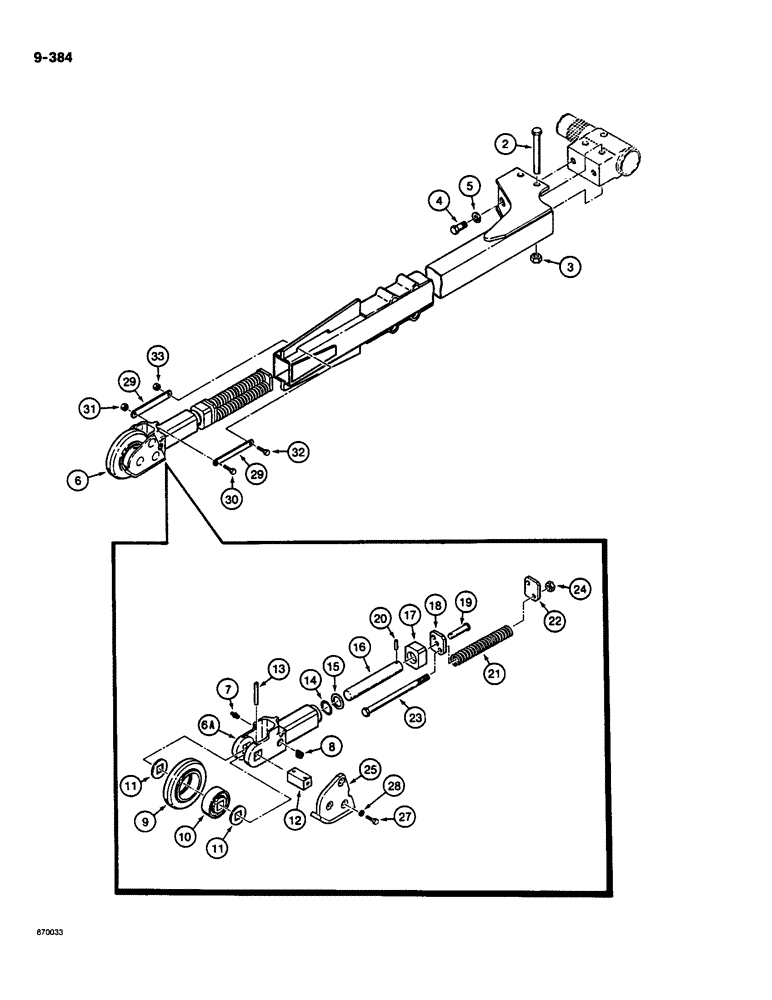

Запчасти Case DH4B (9-384) - TRENCHER CHANNEL BOOM AND BOOM END MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

UNIBOOM -trencher, see figure 9-387 for various boom sizes

1шт.

2

113-2702

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex head, 3/4" - 10 NC x 6", special, grade 8

2шт.

3

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

4

113-798

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex head, 3/4" - 10 NC x 1-1/2" special, grade 8

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

H645358

END

BOOM END ASSEMBLY - channel uniboom, roller mounting, Includes: Ref. 6A-28

1шт.

6a

H115204

CASTING

BOOM END - channel uniboom, roller mounting

1шт.

7

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - with cap, special, straight, 1/8" PTF, special short

1шт.

8

H114728

PLUG

- bleed

1шт.

H531384

ROLLER

ASSEMBLY - boom end, Includes: Ref. 9, 10

1шт.

9

H115261

ROLLER

- boom end, digging, chain

1шт.

10

H747444

ROLLER BEARING,1.5" ID x 100 mm OD x 1.3125"

BEARING - roller

1шт.

11

H117598

WASHER

- roller, spacer

2шт.

12

H381426

SHAFT

SPACER - roller, square

1шт.

13

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2-1/2", Slotted, Shaft

2шт.

14

H748871

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

- plunger rod seal

1шт.

15

H755009

RING

BACKUP RING - O-ring

1шт.

16

H115188

PLUNGER

ROD - plunger

1шт.

H115196

BEARING

BLOCK ASSEMLBY - bearing, Includes: Ref. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - bearing, order H115196 block assembly

1шт.

18

H115238

VALVE SPRING

RETAINER - spring, front

1шт.

19

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

H531111

VALVE SPRING

SPRING ASSEMBLY - adjusting, Includes: Ref. 21-24

1шт.

21

H101998

VALVE SPRING

SPRING - adjusting

2шт.

22

H119164

VALVE SPRING

RETAINER - spring, rear

1шт.

23

H90787

BOLT

BOLT - special

2шт.

24

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

2шт.

25

H644088

SHOE (ASSY)

SHOE - skid, left-hand

1шт.

26

H644070

SHOE (ASSY)

SHOE - skid, right-hand, not shown

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

H114934

DRAG LINK

LINK - boom end retaining

2шт.

30

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

33

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.
