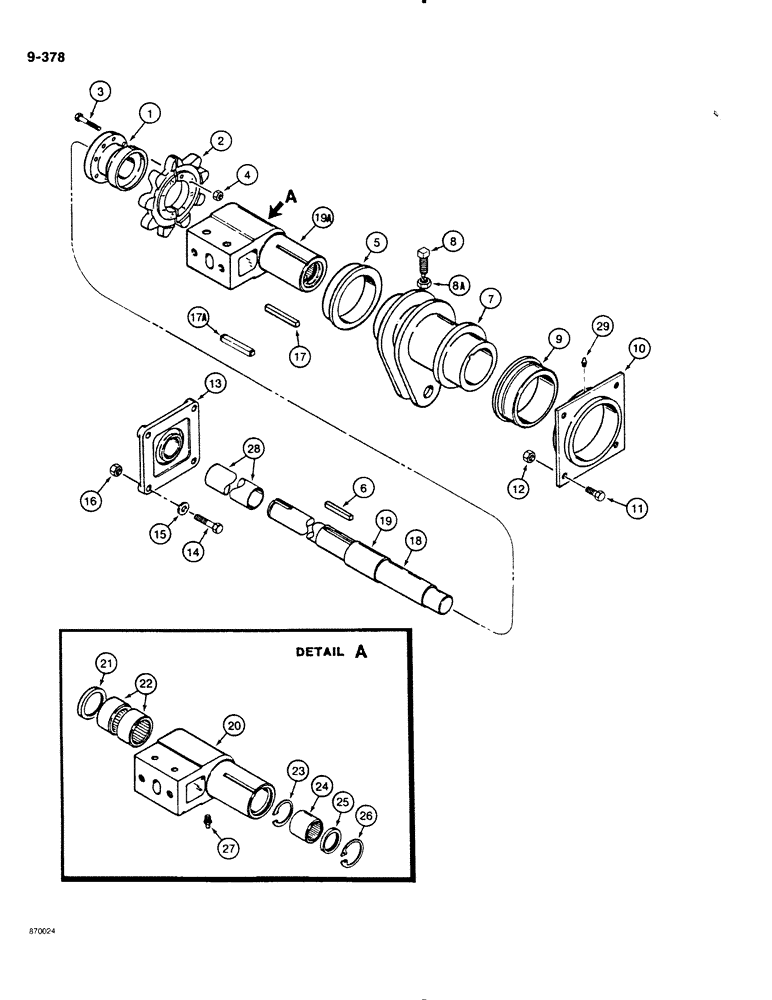

Запчасти Case DH4B (9-378) - CENTERLINE TRENCHER HEADSHAFT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H216739

HUB CAP

HUB - sprocket mounting, uses 3/8" diameter hardware, if used

1шт.

1

H428029

HUB

- sprocket mounting, uses 7/16" diameter hardware, if used

1шт.

2

H148569

DRIVE SPROCKET

SPROCKET - split, 50,500 lb. chainline, uses 3/8" diameter hardware, if used

1шт.

2

H212811

DRIVE SPROCKET

SPROCKET - split, 70,000 lb. chainline, uses 3/8" diameter hardawre, if used

1шт.

2

H427450

SPROCKET ASSY.

SPROCKET - split, 50,000 lb. chainline, uses 7/16" diameter hardware, if used

1шт.

2

H427468

DRIVE SPROCKET

SPROCKET - split, 70,000 lb. chainline, uses 7/16" diameter hardware if used

1шт.

3

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8, If used

8шт.

3

28-736

BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 8

- hex head, 7/16" - 20 NF x 2-1/4", grade 8, if used

8шт.

4

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated, if used

8шт.

4

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16" - 20 NF, plated, if used

8шт.

5

H374322

BUSHING

- boom lift crank, inner

1шт.

6

H115816

KEY

- square, 1/2" x 3-1/4" long

1шт.

7

H641324

CRANK

- boom lift

1шт.

8

H429720

SET SCREW

- square head, 1/2" - 20 NF, special

1шт.

8a

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

9

H374330

BUSHING

- boom lift crank, outer

1шт.

10

H641308

PLATE ASSY.

RETAINER - bushing

1шт.

11

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

4шт.

13

H758292

BEARING

- support, shaft

1шт.

14

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

15

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

4шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

4шт.

17

H377366

KEY

- square, no longer available, order H434305 key and H434304 boom mounting pivot casting

1шт.

17a

H434305

KEY

- special, used with H434304 boom mounting pivot casting

1шт.

18

H642314

SHAFT

- trencher boom head, Includes: Ref. 19

1шт.

19

H216820

SLEEVE CYLINDER

BUSHING - shaft, requires finish machining upon installation

1шт.

19a

H643668

MOUNTING PARTS

CASTING ASSEMBLY - boom mounting pivot, no longer available, order individual components, Includes: Ref. 20-27

1шт.

20

H374918

PIVOT

CASTING - boom mounting pivot, used with sqaure key, ref. 17, if used

1шт.

20

H434304

BOOM

CASTING - boom mounting pivot, used with special key, ref. 17A, if used

1шт.

21

H754812

SEAL

SEAL - bearing

1шт.

22

H748145

BEARING

- boom mounting pivot casting

2шт.

23

H758300

SNAP RING,2.562", Int, #256

Ring, Snap, , brg 2.562", Int, #256

1шт.

24

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - boom mounting pivot casting

1шт.

25

H754804

OIL SEAL

SEAL - bearing

1шт.

26

D38743

SNAP RING,3.00", Int, #300

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

28

H374413

SPACER

- shaft

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.
