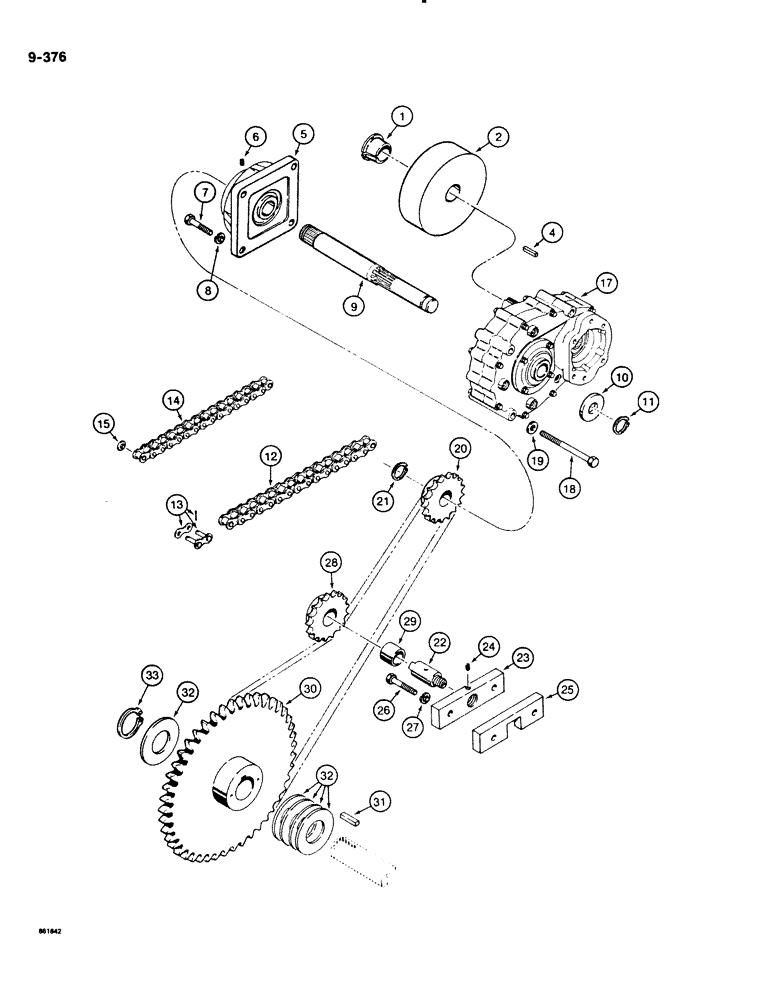

Запчасти Case DH4B (9-376) - TRENCHER HEADSHAFT DRIVE LINE MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H758425

BUSHING

- split taper, flywheel

1шт.

2

H374074

FLYWHEEL

- trencher drive

1шт.

3

A7409

SNAP RING,#137, Ext

RING, Snap, , flywheel, if used #137, Ext

1шт.

4

H376806

KEY

- square, 5/16" x 1-1/2" long

1шт.

5

F96571

BEARING

- trencher drive shaft

1шт.

6

178-268

SET SCREW,Hex Soc, 7/16"-14 x 1/2"

- hex socket headless, 7/16" - 14 NC x 1/2", dog point

2шт.

7

113-508

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

9

H428078

SHAFT

- trencher drive

1шт.

10

R12650

BUSHING

WASHER - flat, special

1шт.

11

H758896

SNAP RING,#112, Ext

RING, Snap, , shaft #112, Ext

1шт.

12

H758888

CHAIN (AG)

CHAIN ASSEMBLY - trencher drive, ASA No. 100, 56 pitch, used on models with trencher chain oiler, if used, Includes: Ref. 13

1шт.

13

H755868

DRAG LINK

LINK - connector, chain

1шт.

14

H759108

CHAIN (AG)

CHAIN ASSEMBLY - trencher drive, oil sealed roller, replaces externally oiled chain, not used on models with trencher chain oiler, if used, Includes: Ref. 15

1шт.

15

N14235

KIT

- connector link, includes the following: (4) O-rings, (1) link plate with pins, (1) side plated, (2) nuts, and instructions, not shown

1шт.

17

H650952

GEARBOX ASSY

GEARBOX ASSEMBLY - trencher drive, parts list Figure 9-412

1шт.

18

113-2426

X,Hex, 1/2"-13 x 4 1/2", G8

BOLT - hex head, 1/2" - 13 NC x 4-1/2", grade 8, plated

4шт.

19

H274894

WASHER

- flat, 1/2", hardened

4шт.

20

H423509

DRIVE SPROCKET

SPROCKET - drive, trencher

1шт.

21

D56051

SNAP RING,#137. Ext

RING, Snap, #137, Ext, sprocket

1шт.

22

H425611

SHAFT

- idler

1шт.

23

H425629

BRACE

- idler shaft

1шт.

24

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

- hex socket headless, 1/4" - 20 NC x 1/2", cone point

1шт.

25

H429753

BLOCK

- tapped, brace retaining

1шт.

26

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

H579318

DRIVE SPROCKET

SPROCKET ASSEMBLY - idler, Includes: Ref. 28, 29

1шт.

28

H239715

DRIVE SPROCKET

SPROCKET - idler

1шт.

29

H748103

NEEDLE BEARING

BEARING - idler sprocket

1шт.

30

H415885

DRIVE SPROCKET

SPROCKET - headshaft, driven

1шт.

31

H219287

KEY

- square, 1/2" x 1-3/4" long

1шт.

32

L12293

SHIM

- .0598" (1.52 mm) thick, headshaft sprocket

1шт.

33

D23191

SNAP RING,#200, Ext

RING, Snap, , headshaft sprocket #200, Ext

1шт.
