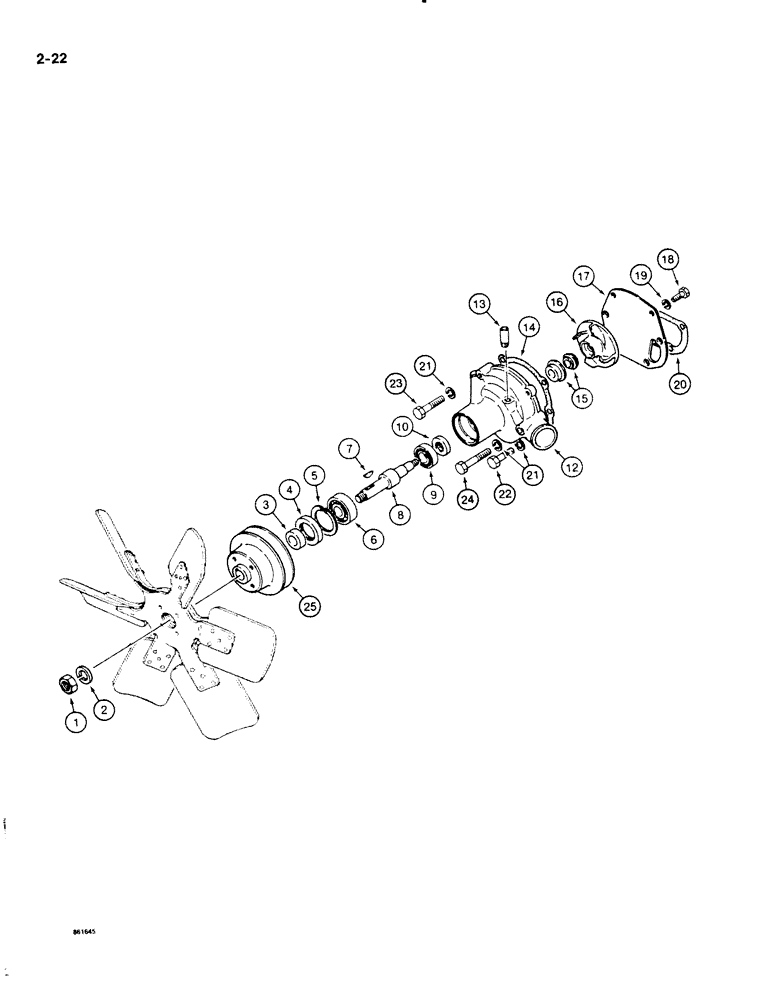

Запчасти Case DH4B (2-22) - WATER PUMP, USED BEFORE ENGINE SERIAL NUMBER 134569 (02) - ENGINE

H659482

PUMP

ASSEMBLY - water, no longer available, order N9953 water pump assembly and 221-1849 plug, see Figure 2-24, Includes: Ref. 1-24

1шт.

1

525-5105

NUT,M14 x 1.5, Cl 8

- hex, 14 mm - 1.5 (8), plated

1шт.

2

892-1114

LOCK WASHER,M14

WASHER - lock, 14 mm, plated

1шт.

3

H411082

SPACER

- water pump

1шт.

4

H412114

OIL SEAL

- oil, shaft, outer

1шт.

5

H758755

RING, SNAP

SNAP RING - bearing retaining

1шт.

6

H758821

BALL BEARING

- shaft, outer

1шт.

7

H758730

KEY

WOODRUFF KEY, special, water pump shaft

1шт.

8

H411074

SHAFT

- water pump

1шт.

9

H758839

BALL BEARING

- water pump, inner

1шт.

10

H412122

OIL SEAL

- oil, shaft, inner

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

13

H412148

PIPE

- bypass inlet

1шт.

14

H412155

GASKET

- housing

1шт.

15

H411066

SEAL

- two-piece, impeller

1шт.

16

H412163

IMPELLER

- water pump

1шт.

17

H412171

COVER

- water pump

1шт.

18

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

2шт.

19

892-1108

LOCK WASHER,M8

plated M8

2шт.

20

H411058

GASKET

- cover

1шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

22

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated

2шт.

23

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex head, 10 mm - 1.5 x 45 mm (8.8), plated

1шт.

24

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

25

H411041

PULLEY

- water pump, not included with water pump

1шт.
