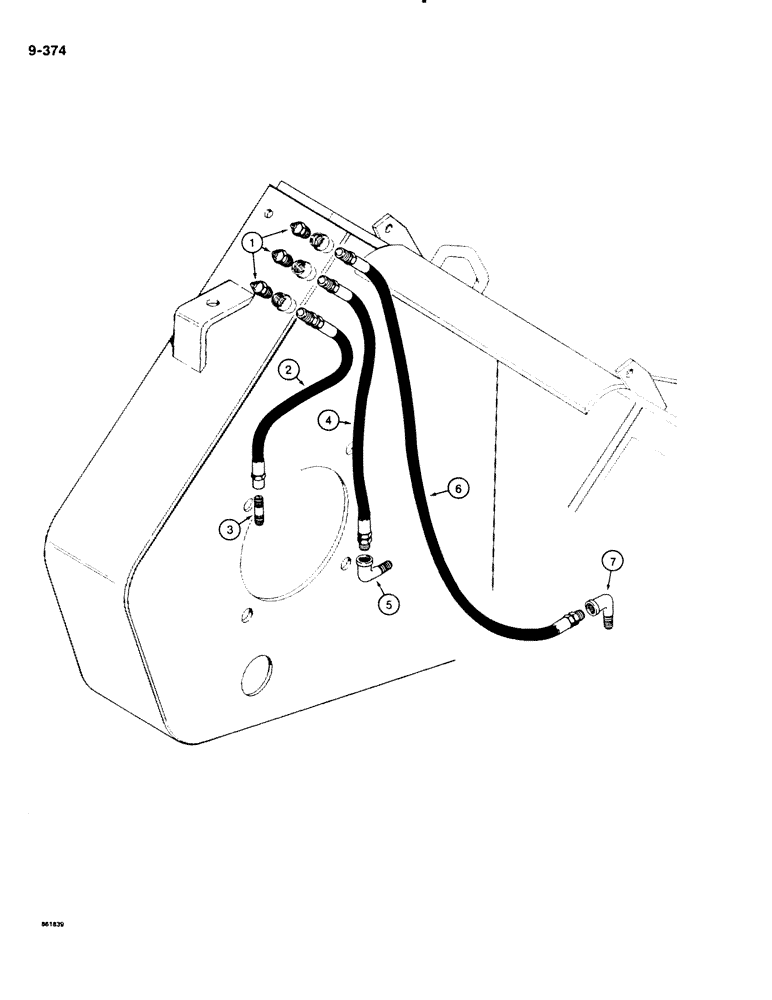

Запчасти Case DH4B (9-374) - TRENCHER REMOTE LUBRICATION SYSTEM (09) - CHASSIS/ATTACHMENTS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

2

H433178

HOSE ASSY.

HOSE - 11-7/8" (300 mm) long, trencher frame to trencher drive shaft bearing, see figure 9-377 for trencher drive shaft bearing

1шт.

3

221-103

FITTING

NIPPLE - 1/8" NPT x 1"

1шт.

4

H661876

HOSE

- 20" (508 mm) long, trencher frame to trencher idler sprocket shaft, see figure 9-377 for trencher idler sprocket shaft

1шт.

5

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

6

H658153

HOSE

- 30" (762 mm) long, trencher frame to trencher boom pivot bearing, see figure 9-379 or 9-381 for trencher boom pivot bearing

1шт.

7

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.
