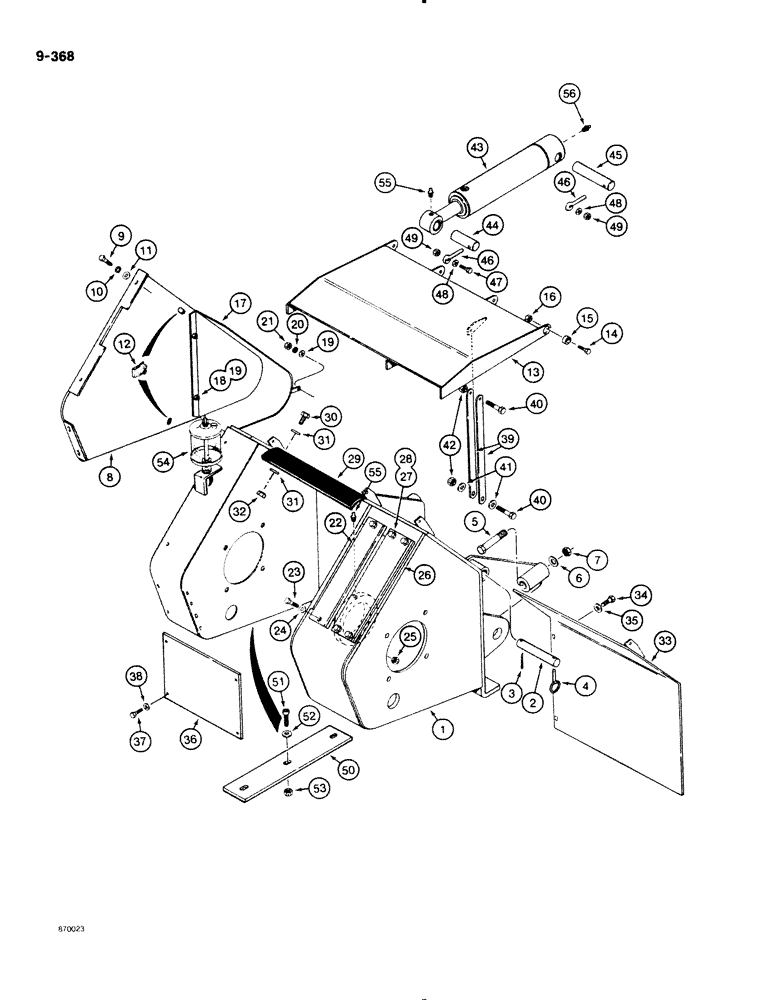

Запчасти Case DH4B (9-368) - TRENCHER FRAME (09) - CHASSIS/ATTACHMENTS

1

H667667

FUNNEL

FRAME - trencher

1шт.

2

H399345

MOUNTING PARTS

PIN - mounting

2шт.

3

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

A30338

PIN

- lock

2шт.

5

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", special, hardened

2шт.

7

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

2шт.

8

H397497

SHIELD

- dirt, side

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

11

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

12

H346650

NUT

U-NUT - 5/16" - 18 NC, special

2шт.

13

H667576

SHIELD

- dirt, upper

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

15

D34162

SPACER

BUSHING - dirt shield

3шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

3шт.

17

H643619

GUARD

- digging chain

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC x 3/4", plated

1шт.

22

H374686

FLAP

COVER - frame, small

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

24

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

25

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC x 3/4", plated

3шт.

26

H374678

FLAP

COVER - frame, large

1шт.

27

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

28

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

29

H399337

PANEL

FLAP - dirt

1шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

31

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

32

231-1445

NUT,5/16"-18, GB

NUT- hex, self-locking, 5/16" - 18 NC, plated

3шт.

33

H644963

SHIELD

- dirt, used on models with offset trencher

1шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used on models with offset trencher Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

35

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used on models with offset trencher

5шт.

36

H379941

PLATE

- cover, trencher frame

1шт.

37

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

38

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

39

H374256

STRAP

LINK - upper dirt shield to trencher frame

2шт.

40

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

41

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

42

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

43

H530519

CYLINDER BLOCK

CYLINDER ASSEMBLY - trenhcer boom lift, parts list Figure 8-222

1шт.

44

H138297

PIN

- 1-1/4" x 3-3/4", trencher boom lift cylinder, rod end

1шт.

45

H303396

AXLE PIN

PIN - 1-1/4" x 6", trencher boom lift cylinder, closed end

1шт.

46

H313981

PIN

LOCK - pin

2шт.

47

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

48

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

49

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

50

H415513

STRIP

WEAR PLATE - chain

1шт.

51

164-611

HEX SOC SCREW,Btn Hd, 1/4" - 28 x 3/4"

BOLT - hex socket button head, 1/4" - 28 NF x 3/4", grade 8

3шт.

52

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

3шт.

53

131-1168

LOCK NUT,1/4"-28, GA

NUT, LOCK, 1/4"-28, GA

3шт.

54

H666693

COOLER ASSY.

OILER ASSEMBLY - trencher drive chain, if used, parts list Figure 9-372

1шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

56

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
