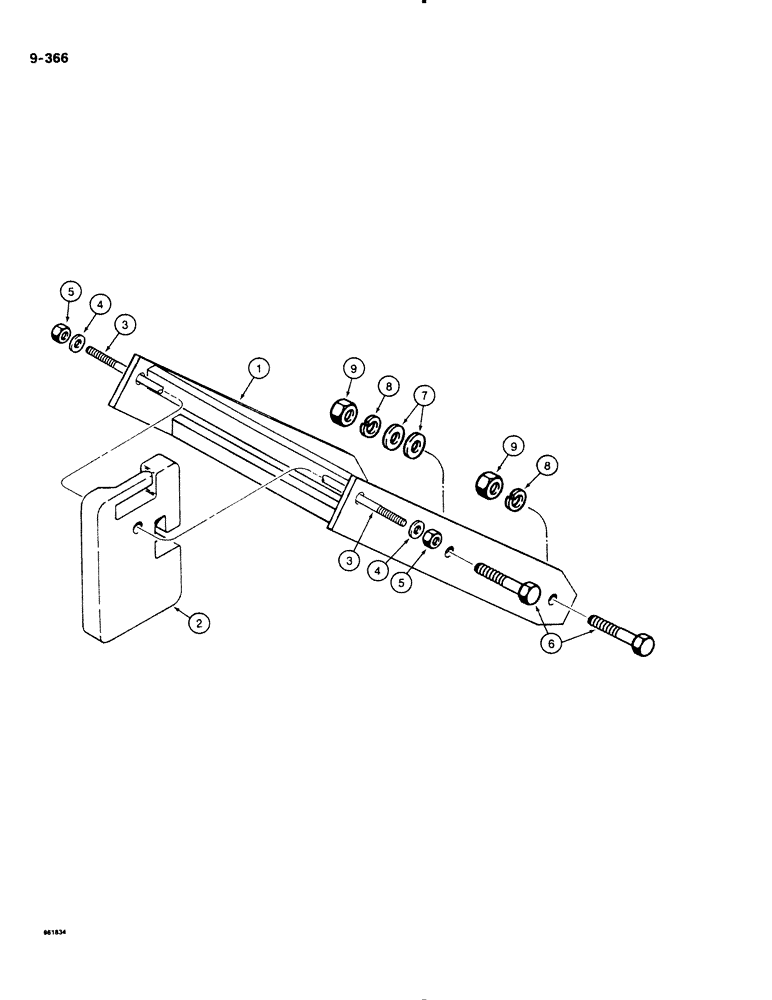

Запчасти Case DH4B (9-366) - COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

H643163

BRACKET

- mounting, front counterweight

1шт.

2

H182386

BALANCER

COUNTERWEIGHT - front, 65 lbs (29.5 kg)

8шт.

3

H379339

STUD

ROD - counterweight

1шт.

4

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

5

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

2шт.

6

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

7

195-111

WASHER,1"

- flat, , plated 1"

4шт.

8

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9

131-1184

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1" - 8 NC, plated

4шт.
