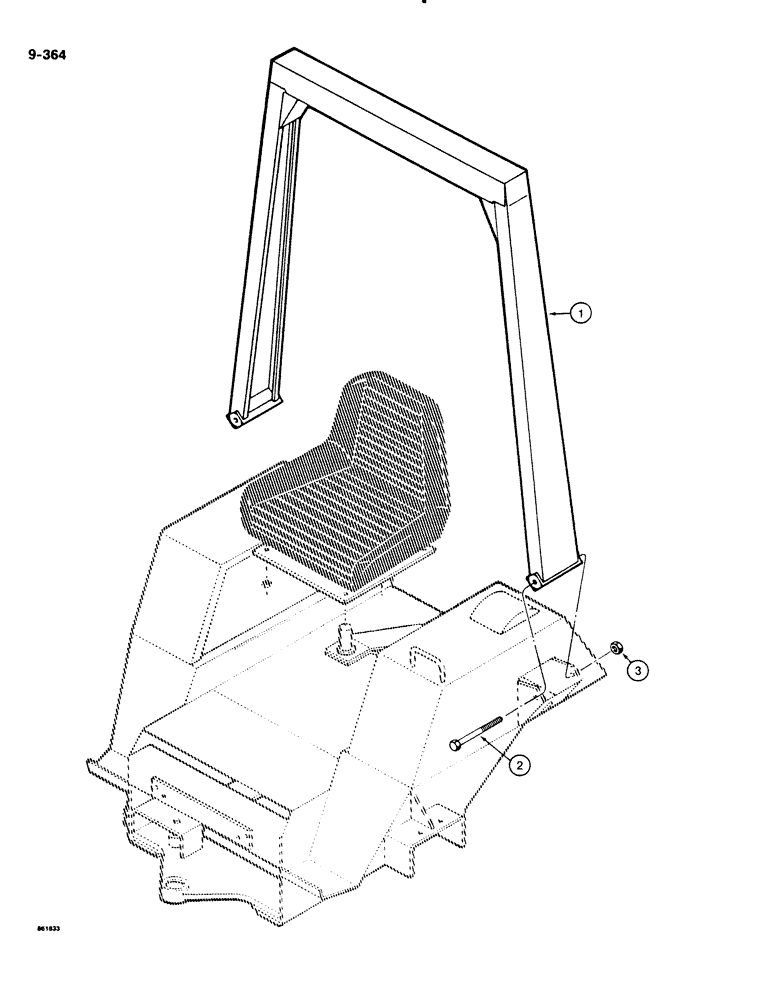

Запчасти Case DH4B (9-364) - ROLL OVER PROTECTIVE STRUCTURE (09) - CHASSIS/ATTACHMENTS

1

H640185

ROPS - 2 post, order H931329 ROPS kit, machinery item, see figure 1-2 for ordering

1шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

2

113-735

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex head, 3/4" - 10 NC x 9", plated

2шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

3

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

2шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

4

D75997

SAFETY BELT ,1.80" W

Non-retractable, Not shown, See Figure 9-362 1.80" W

1шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

5

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Not shown, see figure 9-363 Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

6

195-105

WASHER,7/16"

- flat, , special, not shown, see Figure 9-362 7/16"

6шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

7

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, , Not shown, see Figure 9-362 7/16"-20, GA

2шт.

Part of 2 Post ROPS Kit, P/N H931329

1шт.

H931329

KIT - 2 post ROPS, includes Refs. 1-7, also includes (1) 321-3217 seat belt warning decal, machinery item, figure 1-2 for ordering

1шт.
