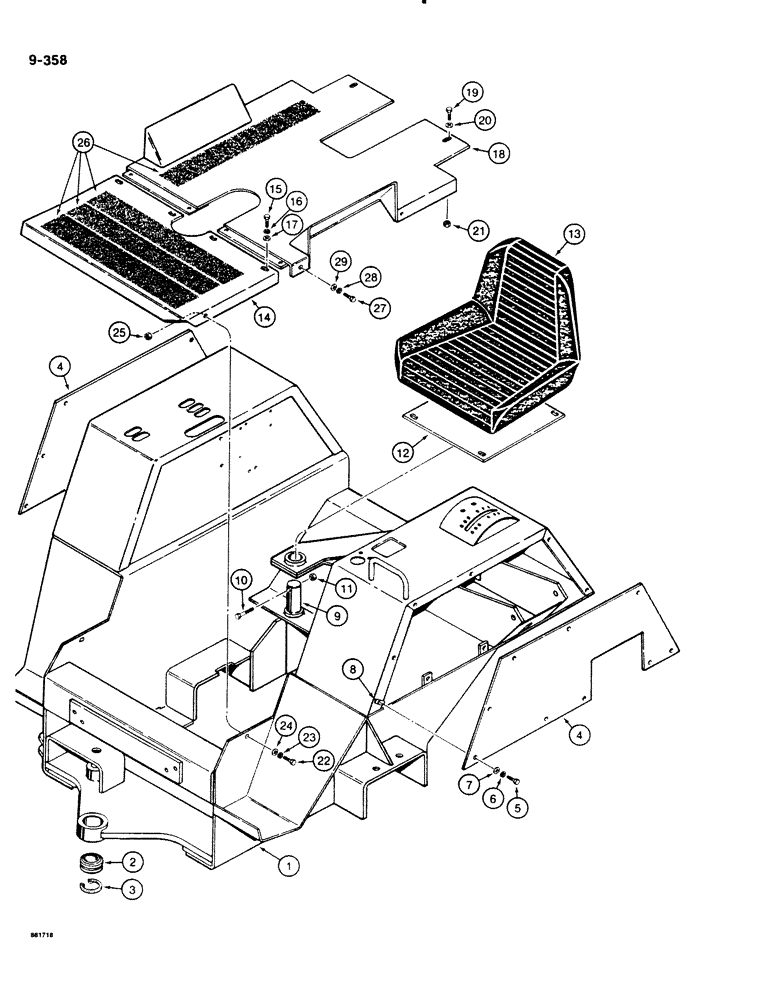

Запчасти Case DH4B (9-358) - REAR FRAME, SEAT, AND FLOORPLATE (09) - CHASSIS/ATTACHMENTS

H671081

FRAME ASSY

FRAME ASSEMBLY - rear

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - rear, order H671081 frame assembly, Includes: Ref. 2, 3

1шт.

The boss is P/N H335786, which is PT6. The plate that holds the boss is P/N H637108, which is also a PT6.

1шт.

2

L12570

BUSHING

BEARING - self-aligning

1шт.

3

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, , brg 2.165", Int, #216

1шт.

4

H372953

PANEL

PLATE - side console

2шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

18шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

18шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

18шт.

8

H346650

NUT

- U-type, 5/16" - 18 NC, special

18шт.

9

H315531

AXLE PIN

PIN - seat mounting

1шт.

10

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

11

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

12

H623496

SEAT

PLATE - seat mounting

1шт.

13

H669457

SEAT

ASSEMBLY - operators, parts list figure 9-363

1шт.

14

H376319

FLOOR

PLATE - floor, front, used on models with mono-stick steering controls, see figure 5-117 for floor plate and mounting hardware used on models with steering wheel

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

18

H640649

DIVIDER BOARD

PLATE - floor, rear

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

26

H431205

ADHESIVE STRIP

STRIP - anti-skid, 3" (76 mm) x 25" (635 mm)

5шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

29

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.
