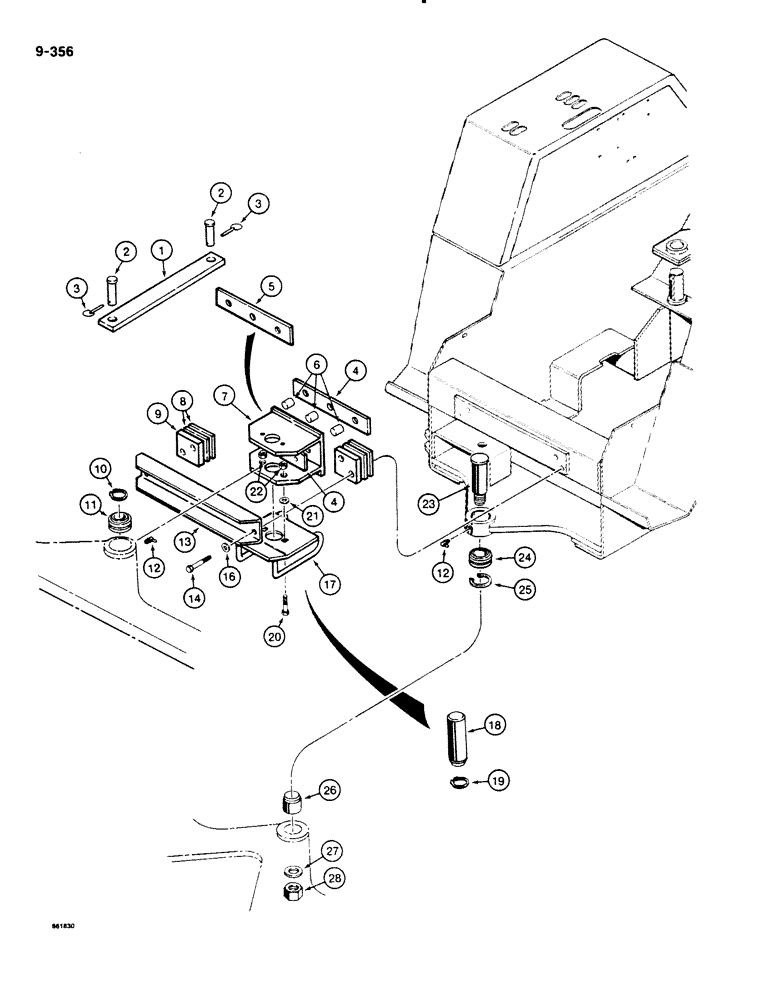

Запчасти Case DH4B (9-356) - ARTICULATION JOINT (09) - CHASSIS/ATTACHMENTS

1

H428243

LINK

- articulation lock

1шт.

2

H30270

CLEVIS

PIN - 3/4" x 2-5/8", articulation lock

2шт.

3

A33497

LINCH PIN,4.76mm OD Pin

PIN - retaining, self-locking

2шт.

4

H336123

BLOCK

PAD - wear

2шт.

5

H430546

SHIM,0.81mm Thk

Spacer - wear pad 0.81mm Thk

1шт.

6

H431528

PIN

- pad retaining

3шт.

7

H669440

BRACKET

- articulation

1шт.

8

H432492

SHIM,0.25mm Thk

(.010") 0.25mm Thk

1шт.

8

H432484

SHIM,0.81mm Thk

.81mm Thk (.032" )

1шт.

9

H429290

SPACER

- channel

2шт.

10

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, , brg, included with front frame, see Figure 9-354 for front frame 2.165", Int, #216

1шт.

11

L12570

BUSHING

BEARING - self-aligning, included with front frame, see Figure 9-354 for front frame

1шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

13

H671065

CHANNEL

- articulation bracket

1шт.

14

113-2601

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", grade 8, plated

4шт.

16

D43266

WASHER

- flat, 5/8", hardened

4шт.

17

H672554

BRACKET

- articulation

1шт.

18

H432476

PIN

- articulation

1шт.

19

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

RING, Retaining, #X137, 1.268" Dia, E-Type

1шт.

20

111-366

BOLT,Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

CARRIAGE BOLT - 3/8" - 16 NC x 1-1/4", plated

2шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

22

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

23

H378968

PIN

- lower pivot

1шт.

24

L12570

BUSHING

BEARING - self-aligning, included with rear frame, see Figure 9-358 for rear frame

1шт.

25

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, , brg, included with rear frame, see Figure 9-358 for rear frame 2.165", Int, #216

1шт.

26

H378976

BUSHING,34.92mm ID x 44.5mm OD x 46mm L

- taper, lower pivot

1шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1", special

1шт.

28

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1" - 14 UNS

1шт.
