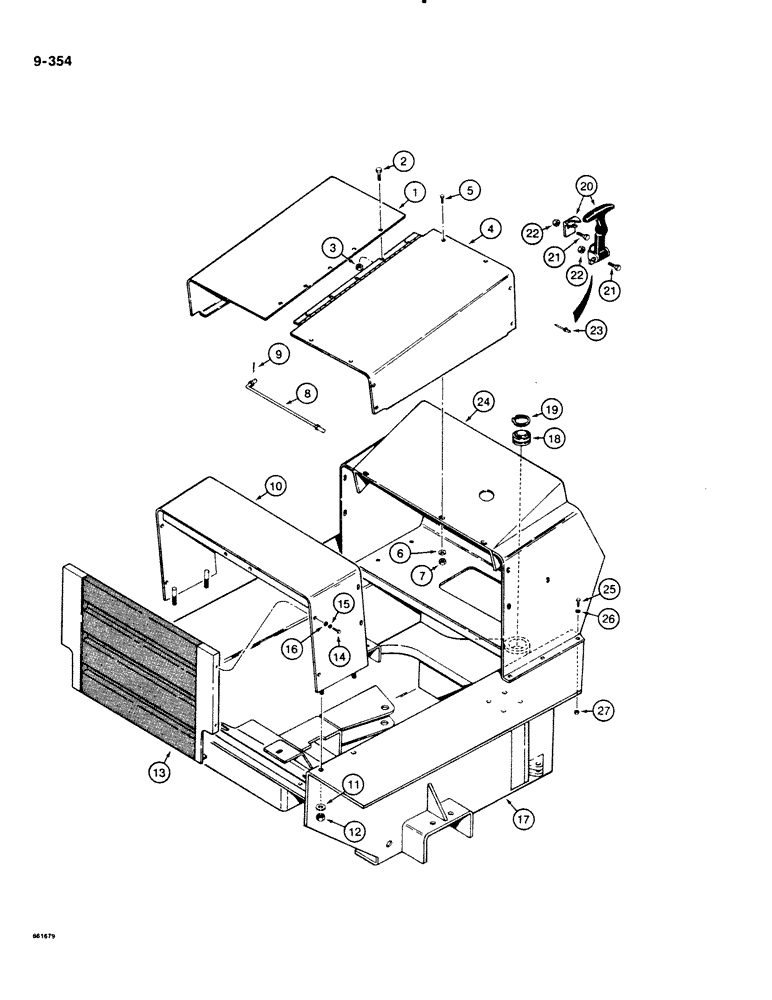

Запчасти Case DH4B (9-354) - HOOD, GRILLE, FRONT FRAME, AND CONSOLE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H661868
HOOD ASSY.
HOOD - engine access, right-hand
1шт.
2
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
5шт.
3
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
5шт.
4
H661850
HOOD ASSY.
HOOD - engine access, left-hand
1шт.
5
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
8шт.
6
195-521
WASHER,5/16", SAE
- flat, 5/16", plated
8шт.
7
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated
8шт.
8
H640243
ROD
- hood support
1шт.
9
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
10
H661843
FRAME
SHROUD - radiator
1шт.
11
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
4шт.
12
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8" - 16 NC, plated
4шт.
13
H651141
GRILLE
- radiator guard
1шт.
14
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
16
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
4шт.
H671206
FRAME ASSY
FRAME ASSEMBLY - front, Includes: Ref. 17-19
1шт.
17
NSS
NOT SOLD SEPARAT
FRAME - front, order H671206 frame assembly
1шт.
18
L12570
BUSHING
BEARING - self-aligning, front frame
2шт.
19
S62213
SNAP RING,2.165", Int, #216
Ring, Snap, , brg 2.165", Int, #216
2шт.
20
H628263
LATCH ASSY.
LATCH - hood
2шт.
21
163-32
SCREW,Hex, #10 - 24 x 1/2"
MACHINE SCREW - hex head, No. 10 - 24 NC x 1/2", if used
8шт.
22
131-1142
LOCK NUT,Hex, #10 - 24, Gr A
NUT, LOCK, , Used with ref. 21 machine screw, if used #10-24, GA
8шт.
23
151-558
RIVET,Pop, 3/16" x .450"
POP RIVET - 3/16" x 1/2", replaces refs. 21 and 22 on later production machines, if used
8шт.
24
H671289
CONSOLE
- front
1шт.
25
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
6шт.
26
195-521
WASHER,5/16", SAE
- flat, 5/16", plated
6шт.
27
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated
6шт.
Выбрано товаров: 28
