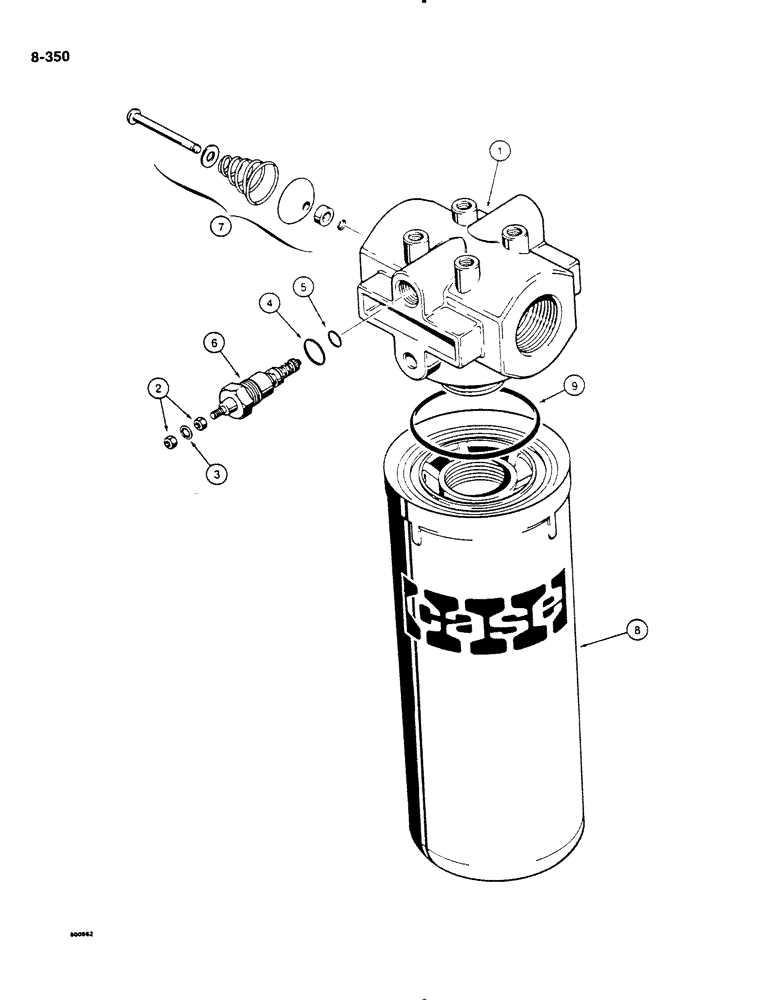

Запчасти Case DH4B (8-350) - ATTACHMENT PUMP HYDRAULIC OIL SUCTION FILTER (08) - HYDRAULICS

H673224

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil (Replaces H663393) S/N JAF0002851, Includes: Ref. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N9067

INDICATOR

RESTRICTION INDICATOR ASSEMBLY - electric, Includes: Refs. 2-6

1шт.

N6941

KIT

- restriction indicator repair, Includes: Ref. 2-5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner, small

1шт.

6

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

H435725

ELEMENT

ASSEMBLY - filter, replaces D94236 element assembly (Replaces N9025)S/N JAF0002851, Includes: Ref. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

N9026

O-RING

-, Serial Range: filter-head

1шт.
