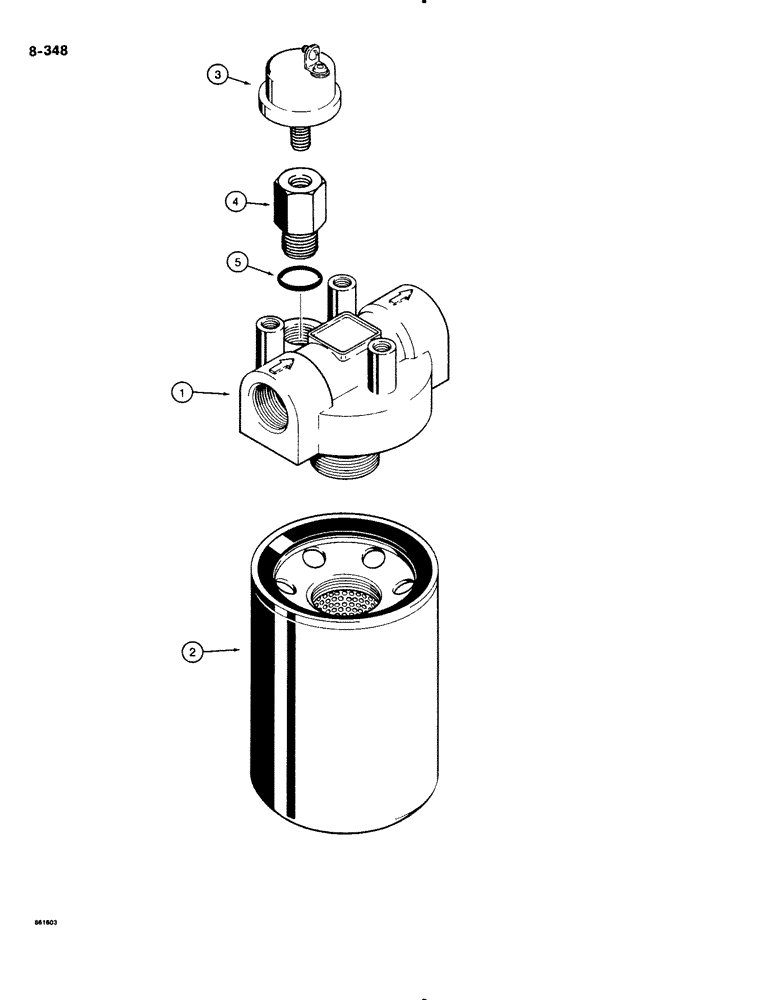

Запчасти Case DH4B (8-348) - GROUND DRIVE HYDRAULIC OIL SUCTION FILTER (08) - HYDRAULICS

H673223

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil suction (Replaces H649269)S/N JAF0002851, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - hydraulic oil suction filter

1шт.

2

H335620

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - hydraulic oil suction filter

1шт.

Ref. 2 - A165029 At S/NJAF0002851

1шт.

3

H342766

SWITCH

- hydraulic oil pressure, not included with filter, see Figure 4-102 for electrical connections

1шт.

4

218-5096

ADAPTER

- straight, Includes: Ref. 5

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
