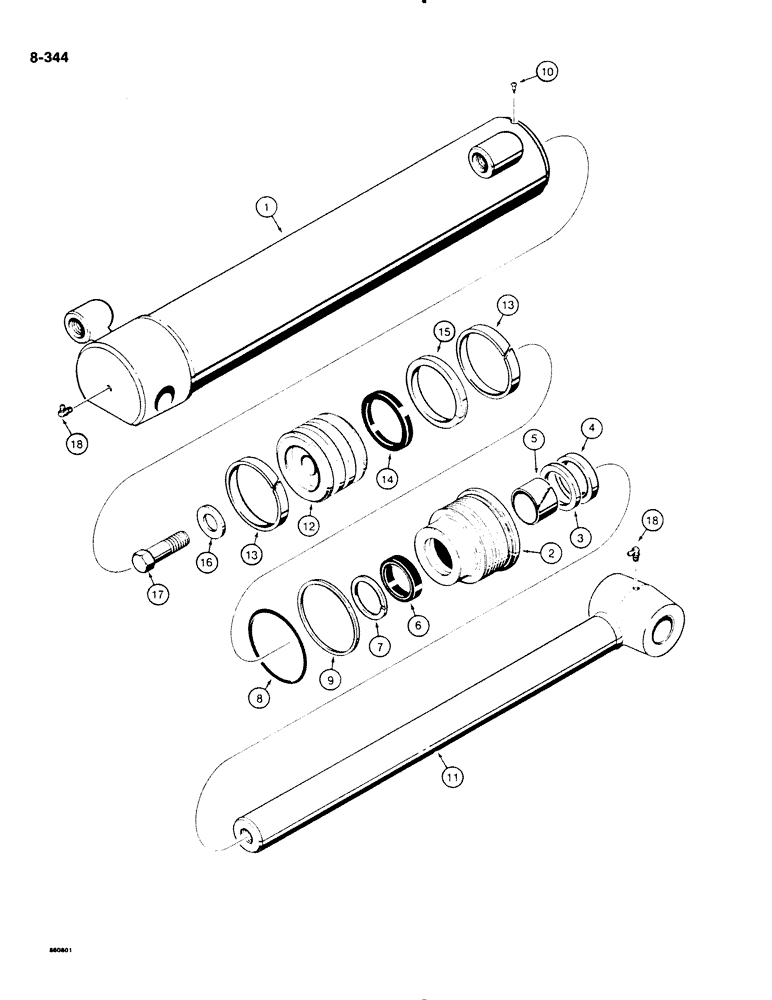

Запчасти Case DH4B (8-344) - BACKHOE STABILIZER, BOOM, DIPPER, AND BUCKET CYLINDERS D100XR AND D100 BACKHOES (08) - HYDRAULICS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - 3" (76 mm) ID x 14-5/8" (371 mm) stroke, D100 backhoe stabilizer, boom, and bucket, D100 backhoe stabilizer, boom, dipper, and bucket, Includes: Ref. 1-18

4-5шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

- cylinder, Includes: Ref. 2-9

1шт.

G104222

GLAND

ASSEMBLY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G109452

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit, P/N G109452

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

6

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

Part of Seal Kit, P/N G109452

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109452

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109452

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated

1шт.

11

G101357

ROD

- piston, 1-1/2" (38 mm) diameter

1шт.

12

G100442

PISTON

- cylinder

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of Seal Kit, P/N G109452

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109452

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G109452

1шт.

16

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

G109452

GASKET KIT

KIT - seal, includes Ref. 4-9, and 13-15

1шт.
