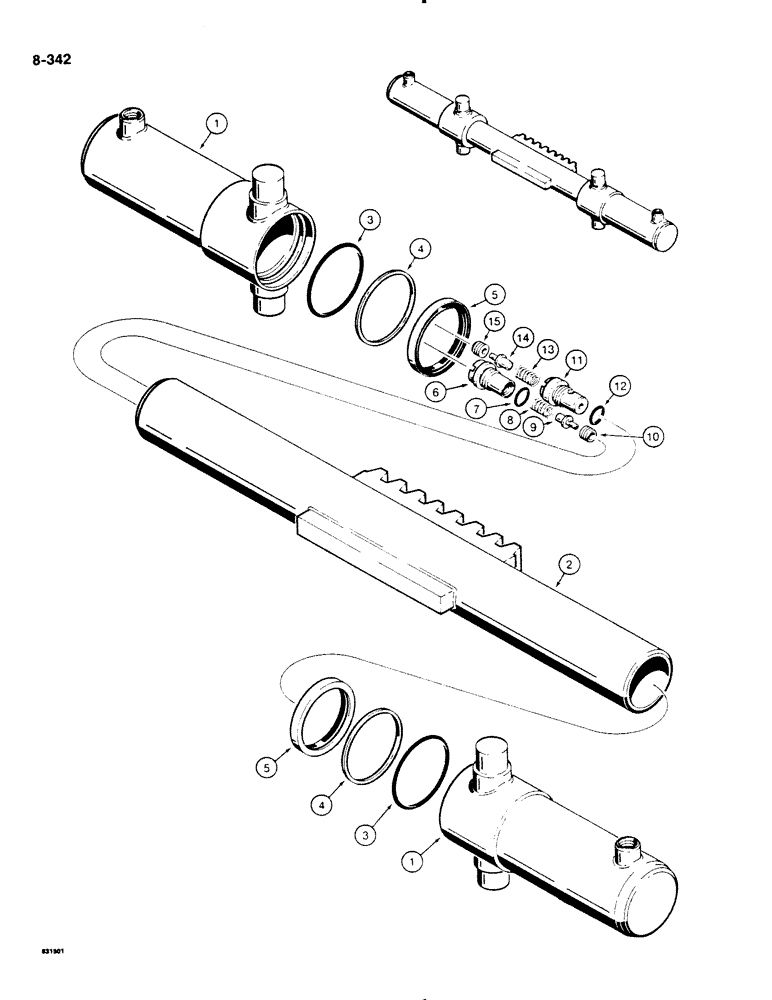

Запчасти Case DH4B (8-342) - BACKHOE SWING CYLINDER (08) - HYDRAULICS

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-3/4" (6985 mm) ID x 8" (203 mm) stroke, Cessna No. 40044-BB, backhoe swing, Includes: Ref. 1-15

1шт.

1

H392068

BARREL

TUBE - swing cylinder

2шт.

2

H53017

PISTON ROD

ROD - piston

1шт.

3

H743591

O-RING

- tube seal

2шт.

Part of Seal Kit, P/N H53041

1шт.

4

H754606

WASHER

BACKUP RING - O-ring (Replaces S114167)

2шт.

Part of Seal Kit, P/N H53041

1шт.

5

H215202

SEAL ASSY.

SEAL - dust

2шт.

Part of Seal Kit, P/N H53041

1шт.

H53025

LOCK VALVE

RELIEF VALVE ASSEMBLY - tube, Includes: Ref. 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

7

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

1шт.

Part of Seal Kit, P/N H53041

1шт.

8

F37883

SPRING

- relief valve

1шт.

9

H138362

SPOOL

POPPET - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H53033

LOCK VALVE

RELIEF VALVE ASSEMBLY - tube, Includes: Ref. 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

1шт.

Part of Seal Kit, P/N H53041

1шт.

13

F37883

SPRING

- relief valve

1шт.

14

H138362

SPOOL

POPPET - relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H53041

SEAL ASSY.

KIT - seal, includes Refs. 3, 4, 5, 7 and 12

1шт.
