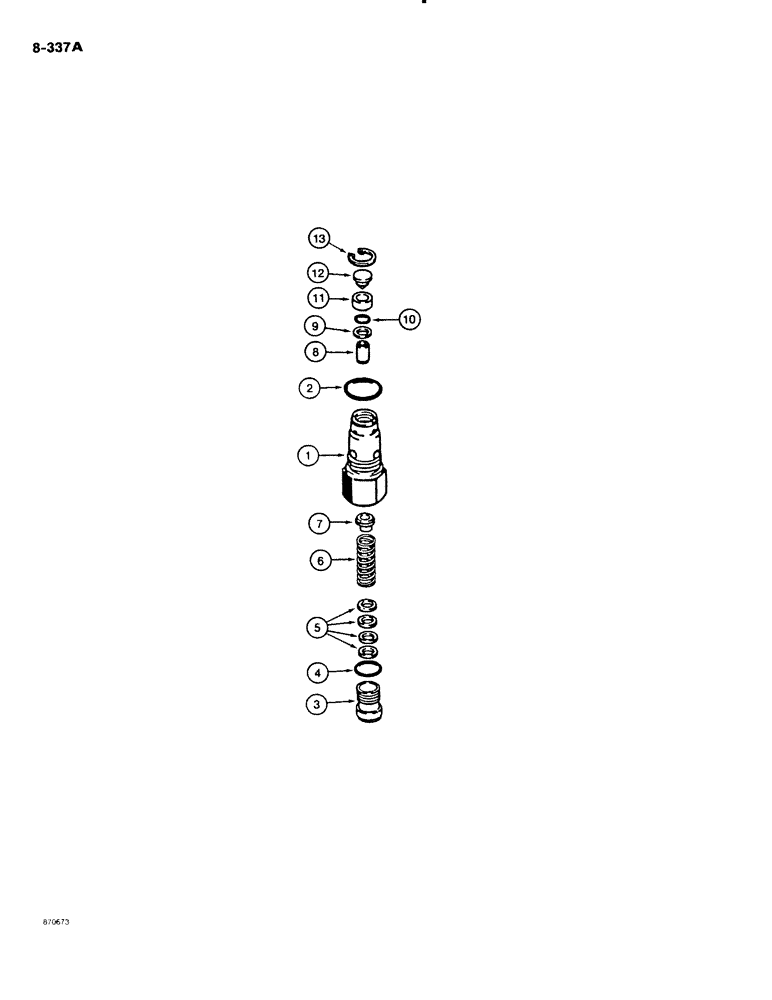

Запчасти Case DH4B (8-337A) - RELIEF VALVE (08) - HYDRAULICS

H351791

VALVE

RELIEF VALVE ASSEMBLY - boom and dipper sections, 3000 psi, Includes: Ref. 1-13

3шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve cartridge

1шт.

2

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large, relief valve

1шт.

3

H120006

PLUG

- adjusting

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .015" (0.38 mm) thick

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .010" (0.25 mm) thick

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .035" (0.89 mm) thick

1шт.

5

N7773

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

8

N8751

SEAT, VALVE

SLEEVE - relief valve

1шт.

9

H745646

RING

BACKUP RING - sleeve O-ring

1шт.

10

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- sleeve

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - pin

1шт.

12

V8752

POPPET - relief valve

1шт.

13

A59973

SNAP RING,0.50", Int, #50

RING, Snap, , valve 0.50", Int, #50

1шт.
