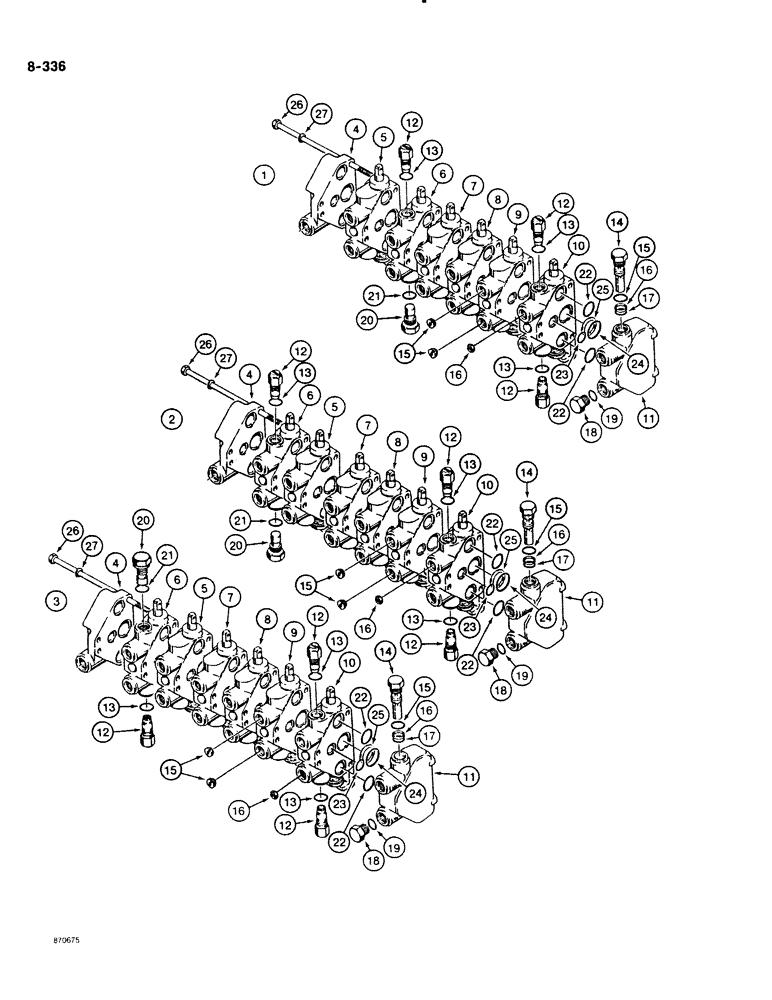

Запчасти Case DH4B (8-336) - BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, six-spool, Cessna No. 30006-AC, used on backhoe with standard controls

1шт.

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, six-spool, Cessna No, 30006-AC, used on backhoe with dual lever controls and control valve in horizontal position

1шт.

For dual lever control on rear mounted backhoe with valve mounted horizontally, the valve must be restacked by interchanging thte bucket and dipper sections. For dual lever controls on backhoes with vertically mounted valve, the plug and circuit relief valve must be interchanged in in the dipper section. The valve must then be restacked by interchanging the bucket and dipper sections. The orifice in the boom section should be moved to the lower port

1шт.

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, six-spool, Cessna No. 30006-AC, used on backhoe with dual lever controls and control valve in vertical position, Includes: Ref. 4-29

1шт.

For dual lever controls on backhoes with vertically mounted valve, the plug and circuit relief valve must be interchanged in in the dipper section. The valve must then be restacked by interchanging the bucket and dipper sections. The orifice in the boom section should be moved to the lower port

1шт.

4

H52803

PLATE ASSY.

END SECTION - outlet

1шт.

5

H513648

VALVE

SECTION - bucket, parts list Figure 8-340

1шт.

6

H513630

SECTOR

SECTION - dipper, parts list Figure 8-338

1шт.

7

H513648

VALVE

SECTION - right hand stabilizer, parts list Figure 8-340

1шт.

8

H513648

VALVE

SECTION - left hand stabilizer, parts list Figure 8-340

1шт.

9

H513648

VALVE

SECTION - swing, parts list Figure 8-340

1шт.

10

H513630

SECTOR

SECTION - boom, parts list Figure 8-338

1шт.

11

H52852

PLATE ASSY.

END SECTION - inlet

1шт.

12

H351791

VALVE

RELIEF VALVE ASSEMBLY - boom and dipper sections, 3000 psi, parts list Figure 8-337A, Includes: Ref. 13

3шт.

13

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large, relief valve

1шт.

14

F88054

VALVE

RELIEF VALVE - end section, 2000 psi

1шт.

H226415

SEAL ASSY.

KIT - seal, relief valve, Includes: Ref. 15-17

1шт.

Part of Seal Repair Kit, P/N H52951

1шт.

15

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large, relief valve

1шт.

16

G32626

RING

BACKUP RING - small O-ring

1шт.

17

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- small, relief valve

1шт.

18

86512512

PLUG,7/8" - 14 ORB

Inlet section, Incl. Ref. 19 Hex Hd, 7/8"-14 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter, Plug

1шт.

20

H52837

PLUG

- dipper section, Includes: Ref. 21

1шт.

21

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug

1шт.

H52969

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

KIT - section seal repair, Includes: Ref. 22-25

1шт.

Part of Seal Repair Kit, P/N H52951

1шт.

22

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- between sections, top and bottom

14шт.

23

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- between sections, small, center

7шт.

24

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- between sections, large, center

7шт.

25

H210849

WASHER

BACKUP RING - between sections, large O-ring, center

7шт.

26

H52811

BOLT

TIE BOLT - hex head, special, section retaining

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

H746859

PLATE ASSY.

ORIFICE - hexagonal, .1360" (3.45 mm) diameter

1шт.

29

H61077

ORIFICE

- round, 0.0935" (2.37 mm) diameter

2шт.

H52951

KIT

- seal repair, between sections, includes Part numbers H226415 and H52969 on this figure and on figures 8-339 and 8-341

1шт.

Seal Repair Kit includes the following kits: (1) H52969, (4) H52977, (2) H52985, and (1) H226415.

1шт.
