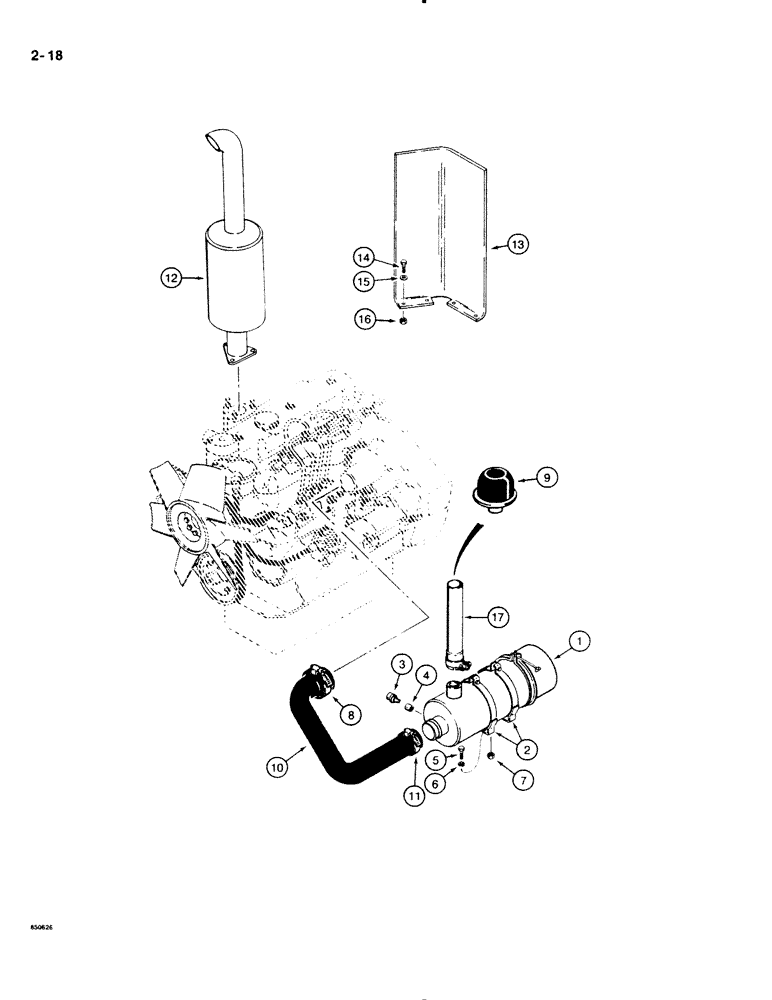

Запчасти Case DH4B (2-18) - AIR CLEANER AND MUFFLER MOUNTING (02) - ENGINE

1

H668939

AIR CLEANER

ASSEMBLY - engine, 2-1/2" (64 mm) diameter, intake, parts list figure 2-21

1шт.

2

R41654

COLLAR CLAMP

BAND ASSEMBLY - air cleaner

2шт.

3

L103131

INDICATOR

SWITCH - air cleaner restriction indicator, see figure 4-103

1шт.

4

221-335

COUPLING,Pipe, 1/8" NPT

- 1/8" NPT

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated, if used

4шт.

8

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

1шт.

9

A61276

AIR CLEANER

CAP - air intake

1шт.

10

H416222

INTAKE AIR HOSE,58.80 mm ID, 60.00 mm ID x 150.00 mm, SAE J200 CA 710

HOSE - air cleaner to engine

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

12

H416131

MUFFLER

- engine exhaust, uses existing engine hardware, if used (Replaces H41631)

1шт.

12a

H652750

MUFFLER - spark arresting, includes 1 (one H652693 muffler and instructions, if used

1шт.

13

H427179

GUARD

SHIELD - muffler heat deflector, optional, if used

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

15

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

17

H423533

PIPE - extension, air intake 50.8 mm OD x 311 mm L

1шт.
