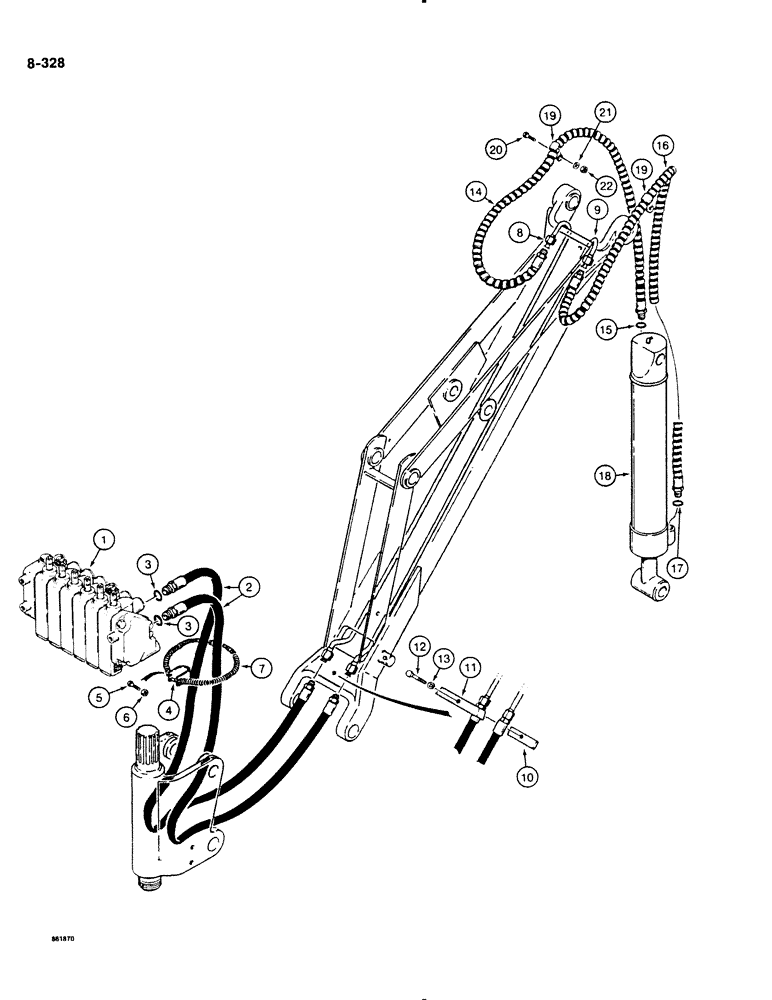

Запчасти Case DH4B (8-328) - BUCKET CYLINDER HYDRAULIC CIRCUIT, REAR MOUNTED D100 BACKHOE - VERTICAL CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

H433544

HYDRAULIC HOSE,9.52 mm ID x 1075.00 mm, SAE 100R1

- From control valve, Includes Ref. 3 9.52 mm ID x 1075.00 mm, SAE 100R1

2шт.

4

H52571

CLAMP

- spring retaining

1шт.

5

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

7

H52548

SPRING

- hose retainer

1шт.

8

H593384

TUBE,12.7 mm OD

- attaches to control valve upper port hose

1шт.

9

H593376

TUBE,0.5" OD

- attaches to contol valve lower port hose

1шт.

10

H51748

CLAMP

SPACER - hose, at lower boom end

1шт.

11

H52589

CLAMP

- hose, at lower boom end

1шт.

12

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

- Special, To closed end bucket cylinder, Includes Ref. 15 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

16

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

Special, to Rod End of Bucket Cylinder, Includes: Ref. 17 0.38" ID x 61.00", SAE 100R1

1шт.

18

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - backhoe bucket, parts list Figure 8-344

1шт.

19

H51763

CLAMP

- hose

2шт.

20

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

21

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

22

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
