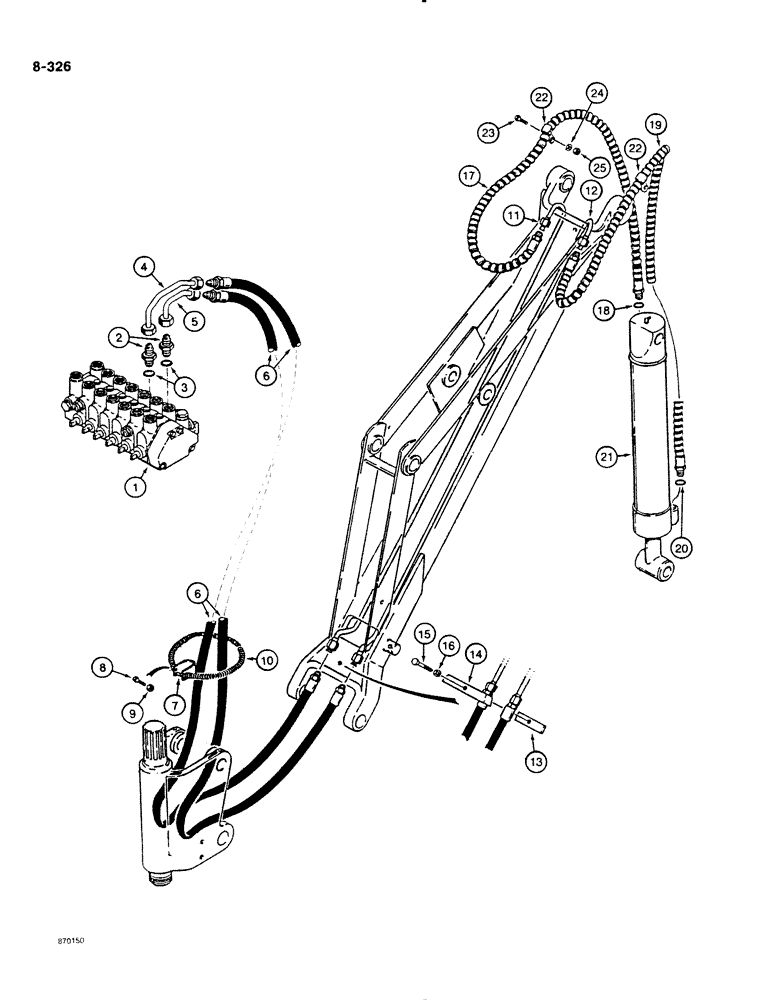

Запчасти Case DH4B (8-326) - BUCKET CYLINDER HYDRAULIC CIRCUIT, REAR MOUNTED D100 BACKHOE - HORIZONTAL CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 3

2шт.

4

H560185

TUBE,0.5" OD x 7.094, 2" L

- control valve to hose, bucket cylinder, closed end

1шт.

5

H560177

TUBE,0.5" OD

- control valve to hose, bucket cylinder, rod end

1шт.

6

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

- Control valve tube to bucket cylinder tube 9.52 mm ID x 889.00 mm

2шт.

7

H52571

CLAMP

- spring retaining

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

10

H52548

SPRING

- hose retainer

1шт.

11

H593384

TUBE,12.7 mm OD

- attaches to control valve upper port hose

1шт.

12

H593376

TUBE,0.5" OD

- attaches to control valve power port hose

1шт.

13

H51748

CLAMP

SPACER - hose, at lower boom end

1шт.

14

H52589

CLAMP

- hose, at lower boom end

1шт.

15

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

17

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

- Special, To closed end of bucket cylinder, Includes Ref. 18 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

19

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

Special, to Rod End of Bucket Cylinder, Includes: Ref. 20 0.38" ID x 61.00", SAE 100R1

1шт.

21

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - backhoe bucket, parts list Figure 8-344

1шт.

22

H51763

CLAMP

- hose

2шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

24

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

25

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
