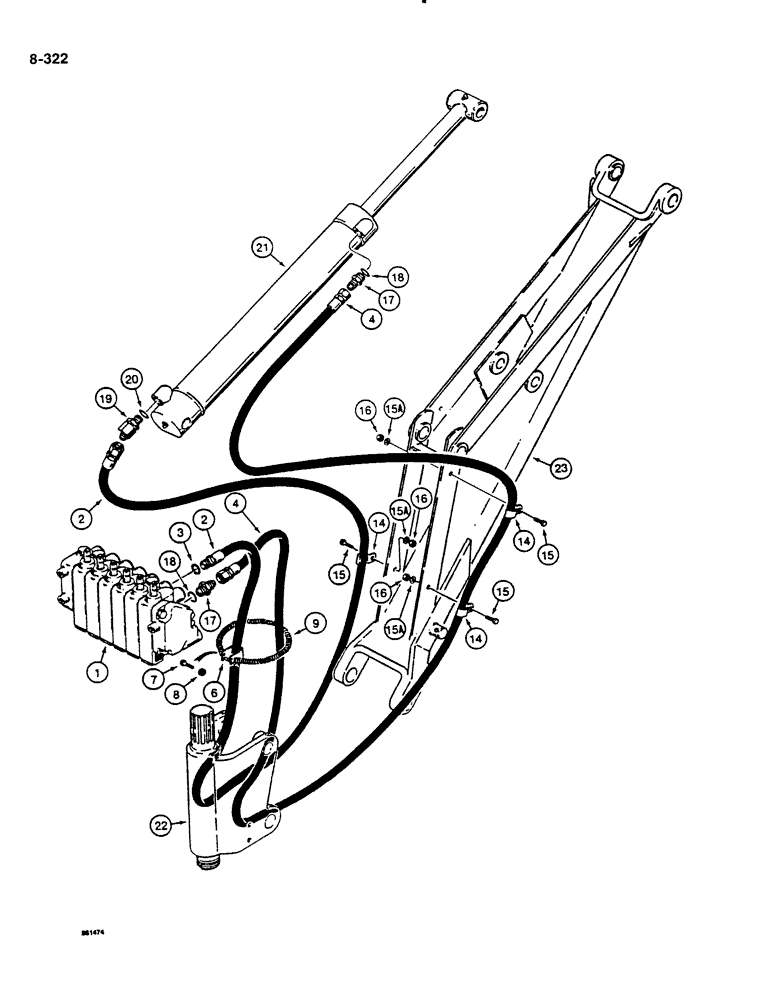

Запчасти Case DH4B (8-322) - DIPPER CYLINDER HYDRAULIC CIRCUIT, REAR D100XR BACKHOE - VERTICAL CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

H268524

HYDRAULIC HOSE,9.52 mm ID x 1473.20 mm, SAE 100R1

- From control valve upper port to closed of dipper cylinder, Includes Ref. 3 9.52 mm ID x 1473.20 mm, SAE 100R1

1шт.

4

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

- From control valve port to rod end of dipper cylinder 9.52 mm ID x 2082.80 mm, SAE 100R1

1шт.

6

H52571

CLAMP

- spring retaining

1шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

9

H52548

SPRING

- hose retainer

1шт.

14

H51763

CLAMP

- hose

3шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

15a

H426767

WASHER

- flat, 1/4", hardened

3шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 18 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

19

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, closed end of dipper cylinder, Incl. Ref 20

1шт.

21

G109376

CYLINDER BLOCK

CYLINDER ASSEMBLY - backhoe dipper, parts list Figure 8-344

1шт.

22

H514596

POST

SWING TOWER - backhoe, parts list Figure 9-438

1шт.

23

H644922

BOOM

- backhoe, parts list Figure 9-438

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
