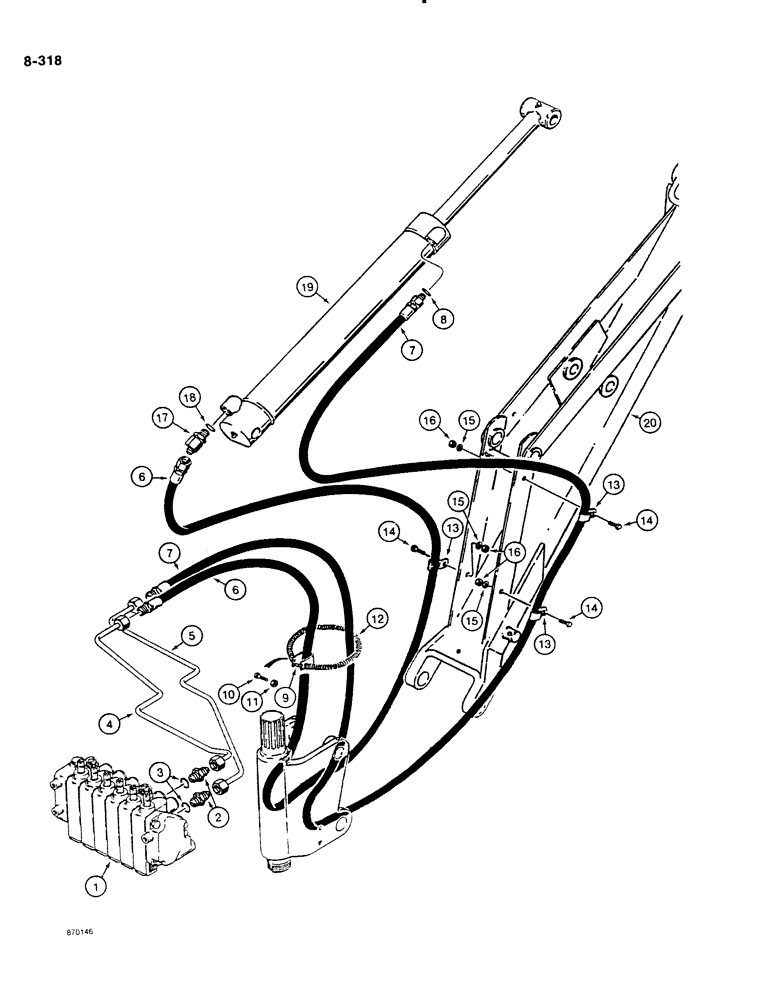

Запчасти Case DH4B (8-318) - DIPPER CYLINDER HYDRAULIC CIRCUIT, FRONT MOUNTED D100XR BACKHOE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 3

2шт.

4

H646570

TUBE,12.7 mm OD

- control valve to hose, dipper cylinder, closed end

1шт.

5

H646588

TUBE,12.7 mm OD

- control valve to hose, dipper cylinder, rod end

1шт.

6

H433078

HOSE ASSY.

HOSE - 51-3/16" (1300 mm) long, tube to diipper cylinder, closed end

1шт.

7

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

Tube to Dipper Cylinder, Rod End, Includes: Ref. 8 0.38" ID x 75.00", SAE 100R1

1шт.

9

H52571

CLAMP

- spring retaining

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

12

H52548

SPRING

- hose retainer

1шт.

13

H51763

CLAMP

- hose

3шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

WASHER - flat, 1/4", hardened

3шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

17

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, closed end of dipper cylinder, Incl. Ref 18

1шт.

19

G109376

CYLINDER BLOCK

CYLINDER ASSEMBLY - backhoe dipper, parts list Figure 8-346

1шт.

20

H644922

BOOM

ASSEMBLY - backhoe, parts list Figure 9-438

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
