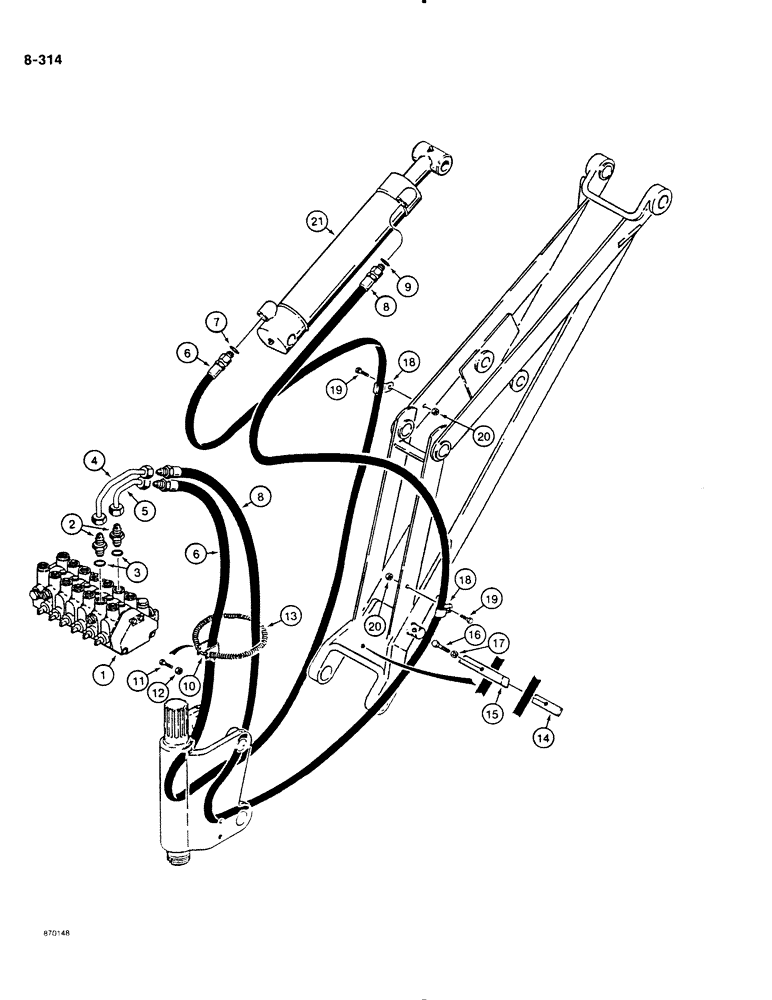

Запчасти Case DH4B (8-314) - DIPPER CYLINDER HYDRAULIC CIRCUIT, REAR MOUNTED D100 BACKHOE - HORIZONTAL CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

H560177

TUBE,0.5" OD

- control valve to hose, dipper cylinder, rod end

1шт.

5

H560185

TUBE,0.5" OD x 7.094, 2" L

- control valve to hose, dipper cylinder, closed end

1шт.

6

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

Tube to Dipper Cylinder, Closed End, Includes: Ref. 7 0.38" ID x 55.00", SAE 100R1

1шт.

8

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

Tube to Dipper Cylinder, Rod End, Includes: Ref. 9 0.38" ID x 75.00", SAE 100R1

1шт.

10

H52571

CLAMP

- spring retaining

1шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

13

H52548

SPRING

- hose retainer

1шт.

14

H51748

CLAMP

SPACER - hose, at lower boom end

1шт.

15

H52589

CLAMP

- hose, at lower boom end

1шт.

16

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

18

H51763

CLAMP

- hose

2шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 1", plated

2шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

21

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - dipper, parts list Figure 8-344

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
