Запчасти Case DH4B (8-308) - BOOM CYLINDER HYDRAULIC CIRCUIT, REAR D100XR BACKHOE - HORIZONTAL CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

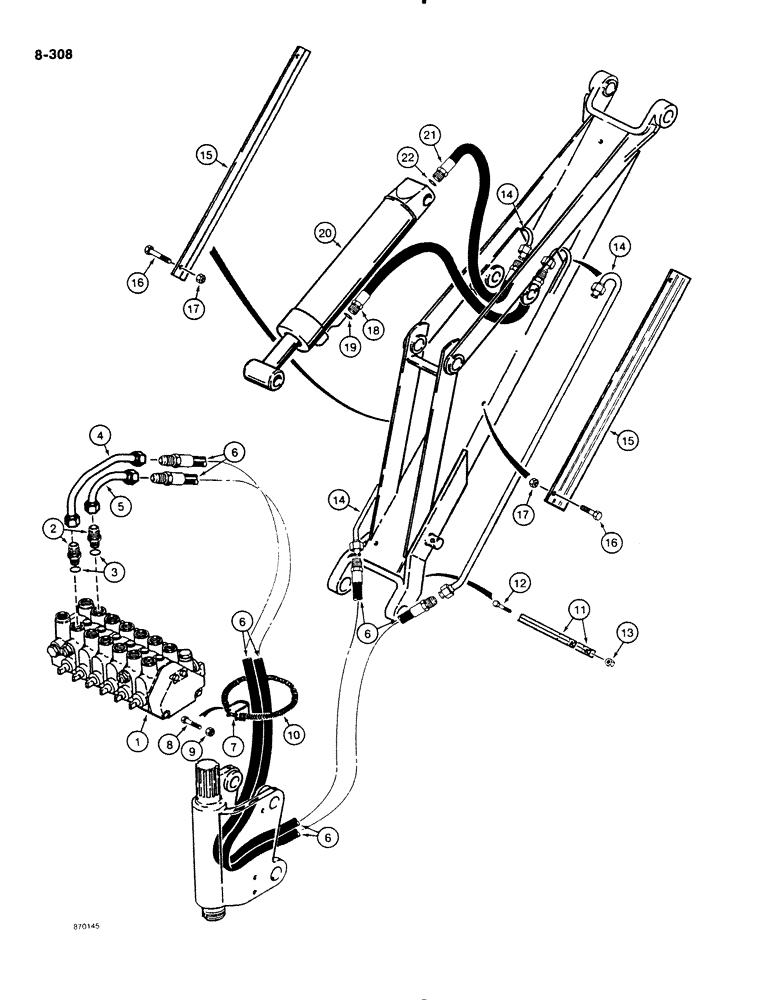

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 3

2шт.

4

H560185

TUBE,0.5" OD x 7.094, 2" L

- control valve to hose, boom cylinder, rod end

1шт.

5

H560177

TUBE,0.5" OD

- control valve to hse, boom cylinder, closed end

1шт.

6

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

- Control valve tube to boom cylinder tube 9.52 mm ID x 889.00 mm

2шт.

7

H52571

CLAMP

- spring retaining

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

10

H52548

SPRING

- hose retainer

1шт.

11

H429696

MOUNTING CLIP

CLAMP - boom tube and hose

2шт.

12

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

13

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

14

H669804

TUBE,1.27 mm OD x 1065, 35 mm L

- boom

2шт.

15

H421800

FRAME

GUARD - backhoe boom

2шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

18

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- To boom cylinder rod end, Includes Ref. 19 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

20

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - backhoe boom, parts list Figure 8-344

1шт.

21

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

To Boom Cylinder Closed End, Includes: Ref. 22 9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
