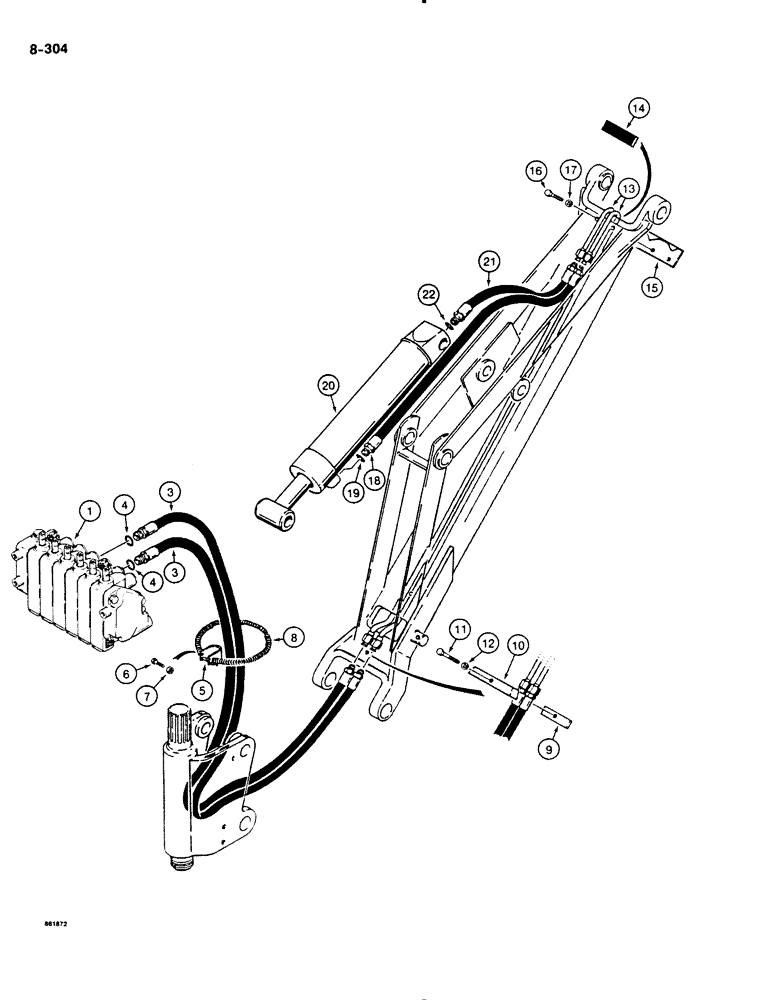

Запчасти Case DH4B (8-304) - BOOM CYLINDER HYDRAULIC CIRCUIT, REAR MOUNTED D100 BACKHOE - VERTICAL CONTROL VALVE (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

3

H433544

HYDRAULIC HOSE,9.52 mm ID x 1075.00 mm, SAE 100R1

- From control valve, Includes Ref. 4 9.52 mm ID x 1075.00 mm, SAE 100R1

2шт.

5

H52571

CLAMP

- spring retaining

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

8

H52548

SPRING

- hose retainer

1шт.

9

H51748

CLAMP

SPACER - hose, at lower boom end

1шт.

10

H52589

CLAMP

- hose, at lower boom end

1шт.

11

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

H593392

TUBE,0.5" OD

- boom

2шт.

14

H61069

FLAP

PAD - anti-wear, rubber

1шт.

15

H51755

CLAMP

- tube, at upper boom end

1шт.

16

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- To boom cylinder rod end, Includes Ref. 19 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

20

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - backhoe boom, parts list Figure 8-344

1шт.

21

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

To Boom Cylinder Closed End, Includes: Ref. 22 9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
