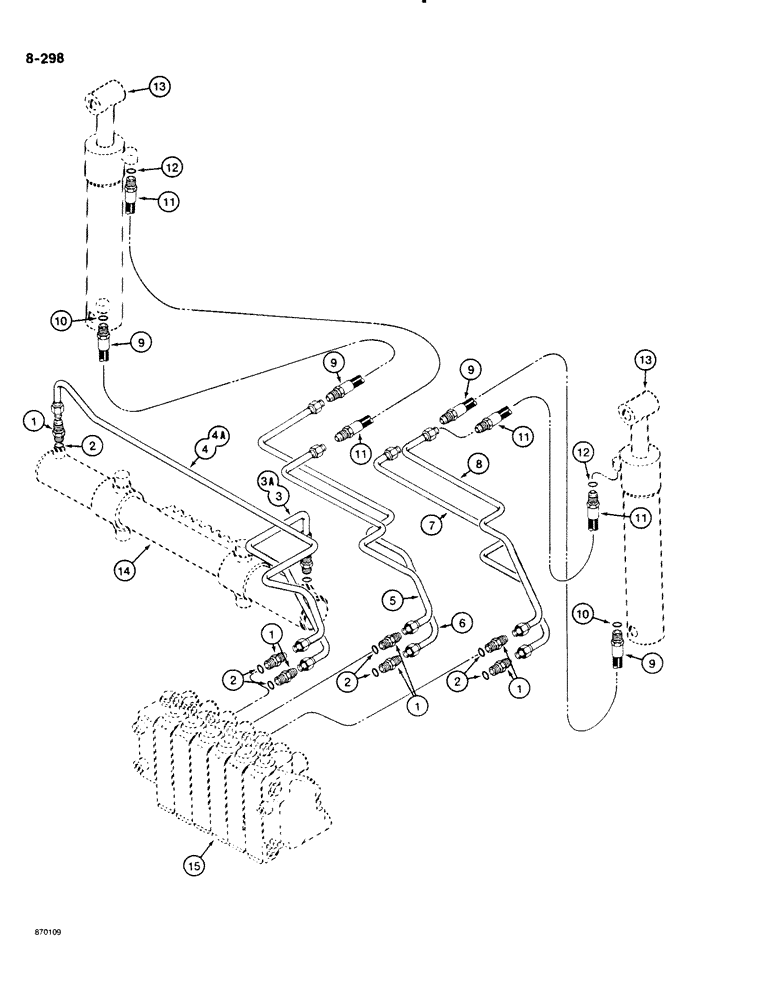

Запчасти Case DH4B (8-298) - SWING AND STABILIZER HYDRAULIC CIRCUIT, FRONT MOUNTED BACKHOE (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 2

8шт.

3

H646646

TUBE,12.7 mm OD

- swing cylinder, short, backhoes with standard controls, if used

1шт.

3a

H664706

TUBE ASSY.,12.7 mm OD

TUBE - swing cylinder, short, backhoes with dual lever controls, if used

1шт.

4

H646638

TUBE,12.7 mm OD

- swing cylinder, long, backhoes with standard controls, if used

1шт.

4a

H664714

TUBE - swing cylinder, long, backhoes with dual controls, if used 12.7 mm OD

1шт.

5

H646612

TUBE,12.7 mm OD

- left-hand stabilizer cylinder, rod end

1шт.

6

H646620

TUBE,12.7 mm OD

- left-hand stabilizer cylinder, closed end

1шт.

7

H646604

TUBE,12.7 mm OD

- right-hand stabilizer cylinder, closed end

1шт.

8

H646596

TUBE,12.7 mm OD

- right-hand stabilizer cylinder, rod end

1шт.

9

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

Tube to Stabilizer Cylinder, Rod End, Includes: Ref. 10 0.38" ID x 55.00", SAE 100R1

2шт.

11

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

Tube to Stabilizer Cylinder, Rod End, Includes: Ref. 12 0.38" ID x 75.00", SAE 100R1

2шт.

13

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - backhoe stabilizer, parts list Figure 8-344

2шт.

14

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - backhoe swing, parts list Figure 8-342

1шт.

15

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
