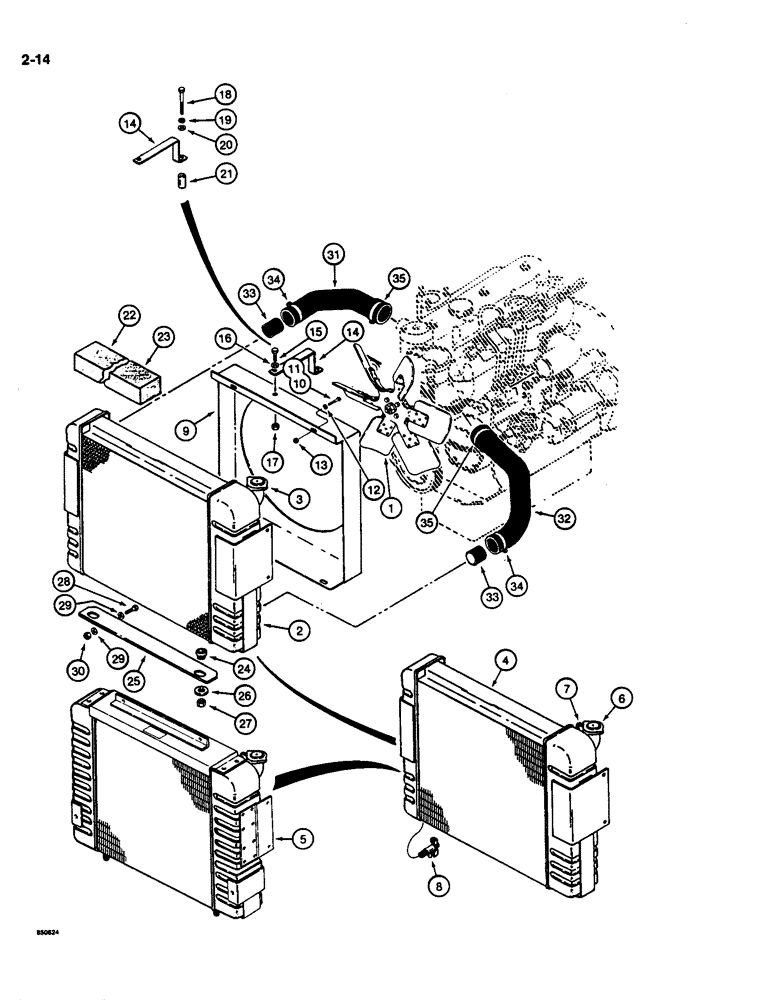

Запчасти Case DH4B (2-14) - RADIATOR AND MOUNTING (02) - ENGINE

1

A173784

FAN

- engine cooling, see Figure 2-26 for fan mounting

1шт.

2

H423921

RADIATOR

- engine cooling, order H434269 radiator for service, Includes: Ref. 3

1шт.

Radiators include integral engine oil cooler. See Figure 8-188 for engine oil cooler hydraulic circuit.

1шт.

3

F23120

CAP

- radiator

1шт.

RADIATOR ASSEMBLY - engine cooling, replaces H423921 radiator

1шт.

Radiators include integral engine oil cooler. See Figure 8-188 for engine oil cooler hydraulic circuit.

1шт.

RADIATOR ASSEMBLY - engine cooling, used on after, Includes: Ref. 4-8, Start Serial: 1256454

1шт.

Radiators include integral engine oil cooler. See Figure 8-188 for engine oil cooler hydraulic circuit.

1шт.

4

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling, used before PIN, order H434269 radiator assembly, Serial Range: -1256454

1шт.

5

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling, used on PIN after, order H434501 radiator assembly, Start Serial: 1256454

1шт.

6

80889R91

COVER

CAP - radiator

1шт.

7

REF

INSTRUCTION

HOSE - 5/16" (8 mm) ID x 19" (483 mm) long, cut from A172261 hose, see below

1шт.

8

A27862

COCK, DRAIN

VALVE - drain

1шт.

9

H416255

SHROUD

- fan

1шт.

10

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Used with H423921 and H434269 radiators

2шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with H434501 radiator Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

12

H426767

WASHER

- flat, 1/4", hardened

2шт.

13

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

14

H409300

BRACKET

- support, upper

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

1-2шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

18

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

- hex head, 8 mm - 1.25 x 90 mm (8.8), plated, if used

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

1шт.

20

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

1шт.

21

H433074

SPACER

- bracket to engine, if used

1шт.

22

H395376

FOAM

BAFFLE - radiator, sides and bottom, 67" (1700 mm) long

1шт.

23

H395368

FOAM

BAFFLE - radiator, top, 30" (760 mm) long

1шт.

24

H340588

BUSHING

MOUNT - radiator, rubber

2шт.

25

H373415

SUPPORT

- radiator

1шт.

26

H182691

RETAINER

WASHER - mount

2шт.

27

131-52

NUT,3/8"-16, GC

NUT - hex, self locking, 3/8" - 16 NC, plated

2шт.

28

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16", plated

2шт.

31

H409912

RADIATOR HOSE,33.00 mm ID, 42.00 mm ID x 82.00 mm, SAE 20R4

Upper 33.00 mm ID, 42.00 mm ID x 82.00 mm, SAE 20R4

1шт.

32

H409920

RADIATOR HOSE,33.00 mm ID, 42.00 mm ID x 120.00 mm, SAE 20R4

Lower 33.00 mm ID, 42.00 mm ID x 120.00 mm, SAE 20R4

1шт.

33

H407353

BUSHING

- hose

2шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

Use to make Ref. 7 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.
