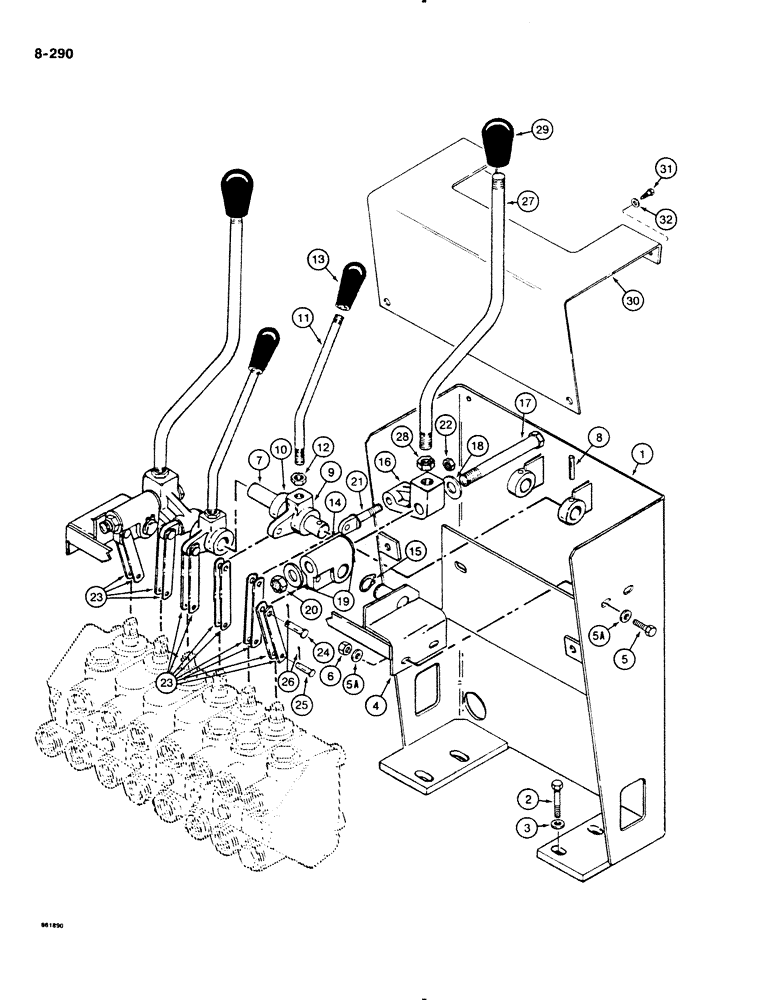

Запчасти Case DH4B (8-290) - DUAL LEVER BACKHOE CONTROLS, FRONT MOUNTED BACKHOE (08) - HYDRAULICS

1

H611145

MOUNTING PARTS

CONTROL TOWER - front mounted backhoe control valve, used on backhoes with dual lever controls

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

4

H611111

BRACKET

- lever mounting

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5a

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

8шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

7

H304063

SHAFT

- control lever

1шт.

8

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

9

H275255

CRANK LEVER

LEVER - control handle

2шт.

10

H26468

SPACER

- levers

1шт.

11

H191924

LEVER

HANDLE - backhoe stabilizer controls

2шт.

12

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

13

A14051

GRIP

KNOB - backhoe stabilizer control handles

2шт.

14

H302851

LEVER

TRUNNION - control lever

2шт.

15

D32101

SNAP RING,#62, Ext

RING, Snap, , trunnion #62, Ext

2шт.

16

H302810

PIVOT

BLOCK - pivot, lever

2шт.

17

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

18

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

19

H256305

WASHER

- special, friction, .062" (1.57 mm) thick

4шт.

20

131-1169

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

21

H217109

BOLT

EYE BOLT -, Serial Range: block-link

2шт.

22

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

2шт.

23

H219006

DRAG LINK

LINK - long, bellcrank

12шт.

24

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

6шт.

25

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

6шт.

26

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.

27

H293084

HANDLE

- boom, swing dipper, and bucket controls

2шт.

28

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

29

H182113

KNOB

- control handle

2шт.

30

H304204

PLATE

COVER - console

1шт.

31

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4", plated

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
