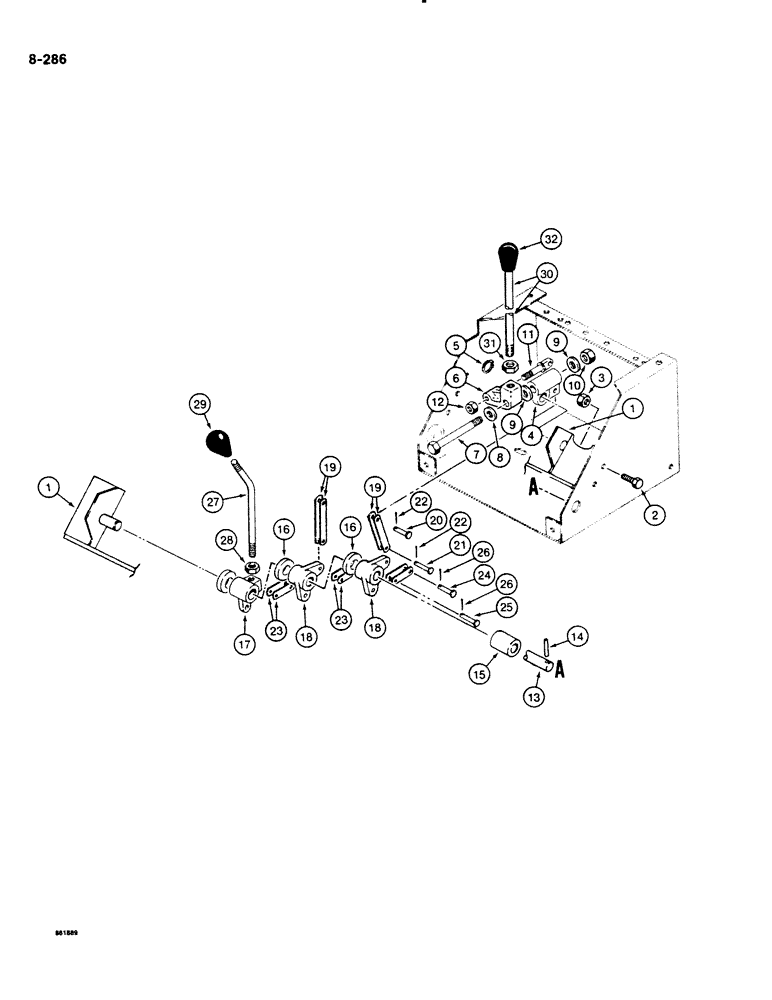

Запчасти Case DH4B (8-286) - DUAL LEVER BACKHOE CONTROLS, REAR MOUNTED BACKHOE HORIZONTAL CONTROL VALVE (08) - HYDRAULICS

1

H656017

BRACKET

- control lever mounting

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

4

H302851

LEVER

TRUNNION - control lever

2шт.

5

D32101

SNAP RING,#62, Ext

RING, Snap, , trunnion #62, Ext

2шт.

6

H302810

PIVOT

BLOCK - pivot, lever

2шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

8

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

9

H256305

WASHER

- special, friction, .062" (1.57 mm) thick

4шт.

10

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

11

H217109

BOLT

EYE BOLT - special, Serial Range: block-link

2шт.

12

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

13

H382317

SHAFT

- bellcrank

1шт.

14

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted

1шт.

15

H195099

SPACER

- lever, long

2шт.

16

H191908

SPACER

- lever, short

5шт.

17

H275263

LEVER

- control handle

2шт.

18

H302836

LEVER

BELLCRANK - lever

4шт.

19

H219006

DRAG LINK

LINK - long, bell crank

8шт.

20

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4' x 51/64" long

4шт.

21

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

4шт.

22

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

8шт.

23

H379057

LINK

- control lever to control valve

12шт.

24

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

6шт.

25

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

6шт.

26

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.

27

H191924

LEVER

HANDLE - stabilizer control

2шт.

28

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

29

A14051

GRIP

KNOB - control handle

2шт.

30

H242693

HANDLE

- boom, swing dipper, and bucket controls

2шт.

31

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

32

H182113

KNOB

- control handle

2шт.
